Spesifikasi Pneumatic Pressure Calibrator

Cari berbagai macam dari pilihan terlengkap Alat Ukur Kalibrasi. Cari penawaran terbaik dan termurah dari supplier terlengkap di Indotrading.

Alat Ukur Kalibrasi Pneumatic Pressure Calibrator

General Specification:
Pressure Range: -0.097 to 10 MPa  ( - 0.97 bar to 100 bar)
Accuracy: ±0.025% F.S
Electonic measurement and source: ±15 V.dc, ±24 mA.dc, Accuracy ±(0.01% of Reading + 1digit), Loop Power
Display: ±15 V.dc, ±24 mA.dc, Accuracy ±(0.01% of Reading + 1digit), Loop Power
Power: Lithium-ion rechargeable battery, Charger 9V, 6A (5 hrs charge, 12 hrs battery life)
Workable Temperature Range: -20 to 70 °C
Storage Temperature Range:-10 to 50°C
Pressure Unit:Pa, hPa, kPa, MPa, bar, mbar, kg/cm2 , psi, mmH20, cmH20, inH20, mmHg, inHg
Test Port: 1/8" PF Female
Weight: 4.1 kg including batteries
Size: 210 mm(W)  ×  360 mm(D)  ×  110 mm(H)

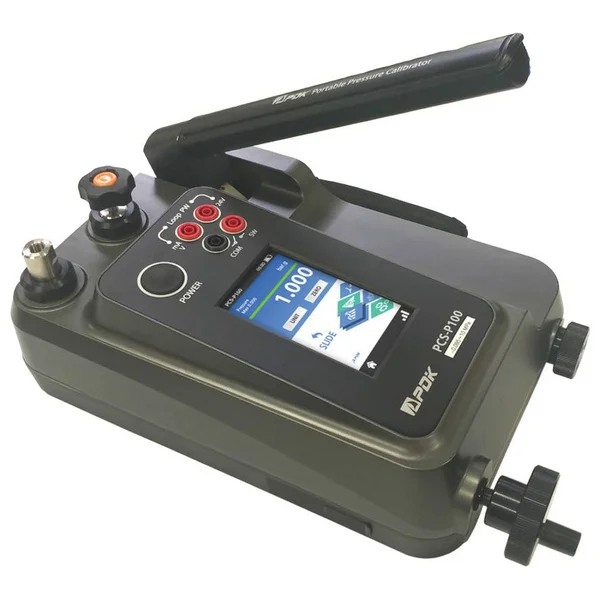

PCS-P100 is Portable pressure calibrator for Pneumatic pressure calibration up to 10 MPa with pressure generation and precise control. An independent pressure calibration system combining electrical signal measuring and loop power to quickly and easily calibrate for a large amount of on-site calibration.
Using Dual-Stage lever type hand pump to generate up to 10 MPa and quickly and easily, and then use the built-in volume controller to precisely adjust the pressure with the secondary fine pressure control.
PCS-P100 also has Pressure/vacuum switching valve to generate up to -97 kPa in vacuum mode which has the best degree of a vacuum in its class.

Full-graphic touchscreen display with intuitive menu selection makes it high visibility and operability.

Full-graphic touchscreen display with intuitive menu selection makes it high visibility and operability.

Dual-Stage lever type hand pump to generate and control up to 10 MPa
Dual-Stage lever type hand pump to generate and control up to –97 kPa for vacuum
0.025% F.S Accuracy
Electrical connection for Transmitter
-Measure up to ±15 V, ±24 mA  -Source up to 24 VDC
 -Loop Power
Pressure switch test, Help functions
included carrying case
Available to apply pressure quick fittings (Optional)

Application:

  • Portable pressure calibration
  • Simple calibration for common calibration lab
  • Calibrate pressure gauge for pressure measuring instruments retail business
  • Pressure generating and controlling for pressure test lab
  • Pressure calibration for laboratory
  • Pneumatic high pressure calibration
  • Easy & quick calibration for pressure transmitter, analog pressure gauge,  digital pressure gauge, pressure switch test



Gambar Produk
Pneumatic Pressure Calibrator 1
Pneumatic Pressure Calibrator 2
Pneumatic Pressure Calibrator 3
