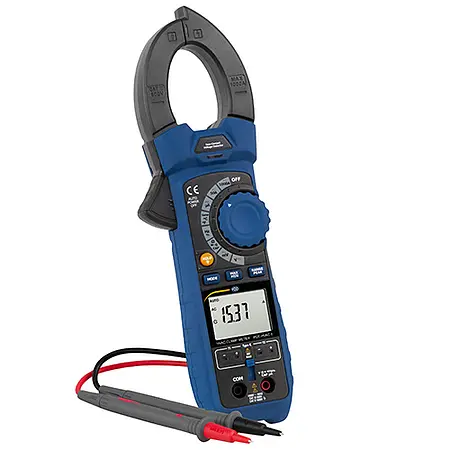

Pce Instruments Clamp Meter PCE-HVAC 6-ICA incl. ISO Calibration Certificate

Rp100

Spesifikasi Pce Instruments Clamp Meter PCE-HVAC 6-ICA incl. ISO Calibration Certificate

Pce Instruments Clamp Meter PCE-HVAC 6-ICA incl. ISO Calibration Certificate

Order no.: PCE-HVAC 6-ICA

PCE-HVAC 6-ICA Clamp meter incl. ISO Calibration Certificate
Up to 1000 A AC / DC / Non-contact voltage detection / Voltage measurement up to 600V. Temperature measurement via thermocouple / Robust rubberized housing

The clamp meter PCE-HVAC 6 was specially developed for the tradesman in the field of heating, ventilation and air conditioning technology. This clamp meteris ideal for many inspection and maintenance jobs in this area. This clamp meter combines many gauges in one. It is possible with this meter to measure currents up to 1000 A in the DC and AC range via the clamp. Furthermore, voltages up to 600V AC / DC can be determined exactly. For quick and easy testing of electrical conductors, the clamp meter is equipped with non-contact voltage detection.

The PCE-HVAC 6 clamp meter can also measure resistors and capacitors. The diode test and continuity test complete the series of electrical measuring functions of the clamp meter. As a special feature, the PCE-HVAC 6 clamp meter has 2 measuring inputs for Type-K thermocouples. With the help of these thermocouples, for example, the flow and return temperature of heating systems can be measured.

The clamp meter was developed for the everyday life of a service worker. The sturdy plastic housing withstands shocks easily. A circumferential rubber coating on the housing of the PCE-HVAC 6 helps ensure that the clamp meter is secure in the hand, even when the technician wears gloves. The display is equipped with an LED backlight, which facilitates reading in dark environments. As a further highlight, the clamp meter on the pliers tip has a measuring point illumination.



Features


- Current measurement up to 1000 A
- Cover of the measuring sockets
- Voltage measurement up to 600V
- Temperature measurement via 2 thermocouples
- Display & measuring point illumination
- Non-contact voltage detection
- Incl. ISO Calibration Certificate



Specification

Current measurement DC A





Measuring range

Resolution

Accuracy (of measurement value)

500 μA

0.01 μA

± (1% + 6 digits)

5000 μA

0.1 μA

± (1% + 6 digits)

50 A

0.01A

± (2.5% + 5 digits)

1000 A

0.1 A

± (2.5% + 30 digits)







Current measurement AC A





Measuring range

Resolution

Accuracy (of measurement value)

500 μA

0.01 μA

± (1.5% + 30 digits)

5000 μA

0.1 μA

± (1.5% + 30 digits)

50 A

0.01A

± (2.5% + 30 digits)

1000 A

0.1 A

± (2.8% + 30 digits)







Note: For AC A measurements, the specification of accuracy refers to the range of 5% to 100% of the measuring range







Resistance measurement





Measuring range

Resolution

Accuracy (of measurement value)

500 Ω

0.01

± (1% + 9 digits)

5 kΩ

0.0001

± (1% + 5 digits)

50 kΩ

0.001

± (1% + 5 digits)

500 kΩ

0.01

± (1% + 5 digits)

5 MΩ

0.0001

± (3% + 10 digits)

50 MΩ

0.001

± (3.5% + 10 digits)







Voltage measurement DC V





Measuring range

Resolution

Accuracy (of measurement value)

500 mV

0.01 mV

± (0.1 % + 8 Digit)

5 V

0.0001 V

± (0.1 % + 4 Digit)

50 V

0.001 V

± (0.1 % + 4 Digit)

500 V

0.01 V

± (0.1 % + 4 Digit)

600 V

0.1 V

± (0.5 % + 4 Digit)







Voltage measurement AC V (50 Hz ... 100 Hz)





Measuring range

Resolution

Accuracy (of measurement value)

500 mV

0.01 mV

± ( 0.8 % + 9 Digit) (at 50 Hz / 60 Hz)

5 V

0.0001 V

± (1 % + 30 Digit)

50 V

0.001 V

± (1 % + 30 Digit)

500 V

0.01 V

± (1 % + 30 Digit)

600 V

0.1 V

± (1 % + 30 Digit)







Note: For AC V measurements, the specification of accuracy refers to the range of 5% to 100% of the measuring range







Capacitance measurement





Measuring range

Resolution

Accuracy (of measurement value)

500 nF

0.01

± (3.5% + 40 digits)

5000 nF

0.1

± (3.5% + 10 digits)

50 μF

0.001

± (3.5% + 10 digits)

500 μF

0.01

± (3.5% + 10 digits)

5mF

0.0001

± (5% + 10 digits)







Frequency measurement





Measuring range

Resolution

Accuracy (of measurement value)

50 Hz

0.001

± (0.3% + 2 digits)

500 Hz

0.01

± (0.3% + 2 digits)

5 kHz

0.0001

± (0.3% + 2 digits)

50 khz

0.001

± (0.3% + 2 digits)

500 kHz

0.01

± (0.3% + 2 digits)

5 Mhz

0.0001

± (0.3% + 2 digits)

10 MHz

0.001

± (0.3% + 2 digits)







Duty cycle





Measuring range

Resolution

Accuracy (of measurement value)

5% ... 95%

0.1

± (1% + 2 digits)







Pulse width: 100 μs ... 100 ms





Frequency: 10 Hz ... 10 kHz











Temperature





Measuring range

Resolution

Accuracy (of measurement value)

-100 ... 1000°C / -148 ... 1832°F

0.1

± (1% + 2.5°C / 3.5°F)







General technical data





Conductor diameter

Max. 48 mm / 1.9 in

Display

Two lines 50,000 digits

Continuity test

50 ohms / < 50 mA

Diode test

0.3 mA / 2.8 V DC

Battery indicator

Battery icon when battery low

Overrange

OL, if measuring range exceeded

Sample rate

2 Hz

Peak detection

> 1 ms

Thermocouple

Type K

Fuse

500-mA ceramic quick-acting

AC bandwidth (AC A / AC V)

50 Hz ... 400 Hz

AC measurement

True RMS

Operating conditions

5 ... 40°C / 41 ... 104°F, max. 80% RH at 31°C / 87.8°F

Storage conditions

-20 ... 60°C / -4 ... 140°F, max. 80% RH

Power supply

9V block battery

Automatic shutdown

After about 30 minutes

Dimensions (W x H x D)

230 x 76 x 40 mm / 9 x 3 x 1.6 in

Weight

315 g / < 1 lb

Safety

IEC 1010-1 (2001):
EN 61010-1 (2001)
CAT III 600V
CAT II 1000V Degree of
pollution 2







Accessories

PCE-PA-ADP-SCHUKO Power Adapter Adapter

Order no.: PCE-PA-ADP-SCHUKO

PCE-PA-ADP-SCHUKO Power Adapter Adapter

Power measuring adapter with earthing contact plug and protective contact socket. The measuring adapter can be used for current measurements up to 10 A.


- Direct connection to power meter, multimeter, etc.
- Allows indirect current measurement with current clamps

Catalogue: Measuring Instruments / Test Meters / Power Meter

Manufacturer: PCE Instruments



Similar items

Clamp Meter PCE-HVAC 6

Order no.: PCE-HVAC 6

Clamp Meter PCE-HVAC 6

The clamp meter PCE-HVAC 6 was specially developed for the tradesman in the field of heating, ventilation and air conditioning technology. This PCE-HVAC 6 clamp meter is ideal for many inspection and maintenance jobs in this area. You can buy the clamp meter PCE-HVAC 6 here in our online shop.


- Current measurement up to 1000 A
- Cover of the measuring sockets
- Voltage measurement up to 600V
- Temperature measurement via 2 thermocouples

Catalogue: Measuring Instruments / Test Meters / Clamp Meter

Manufacturer: PCE Instruments



What's In The Box:

1 x Clamp meter PCE-HVAC 6
1 x Transport bag
2 x Test leads
1 x Battery 9V block battery
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
