Pce Instruments Data Logger PCE-VDL 16I

Rp100

Spesifikasi Pce Instruments Data Logger PCE-VDL 16I

Pce Instruments Data Logger PCE-VDL 16I

Order no.: PCE-VDL 16I

Data logger PCE-VDL 16I
 With up to 800 Hz / Temperature, Humidity, Air pressure, Vibration, and Light

The data loggers of the PCE-VDL series are available in two versions. The data logger PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.

The data logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.



Features

- 3-axis Acceleration up to 800 Hz

- For temperature, humidity, air pressure and light

- 4 GB SD memory card

- Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in



Specification

Temperature



Measuring range

-20 … 65°C / -4 ... 149°F

Accuracy

± 0.2°C / ± 0.36°F

Resolution

0.01°C / 0.018°F

Max. Sampling rate

1 Hz





Humidity



Measuring range

0 … 100% r.H.

Accuracy

± 1.8% r.H.

Resolution

0.04% r.H.

Max. Sampling rate

1 Hz





Air pressure



Measuring range

10 … 2000 mbar

Accuracy

±2 mbar (750 … 1100 mbar); otherwise ± 4 mbar

Resolution

0.02 mbar

Max. Sampling rate

1 Hz





Light



Measuring range

0.045 … 188,000 Lux

Resolution

0.045 Lux

Max. Sampling rate

1 Hz





3 Axes Acceleration



Measuring range

± 16 g

Accuracy

0.24 g

Resolution

0.00390625 g

Max. Sampling rate

800 Hz



Accessories

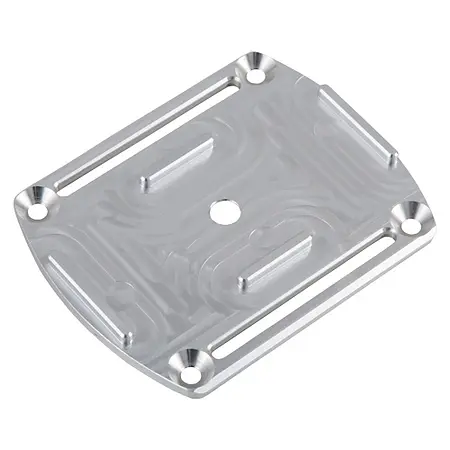

PCE-VDL MNT optional mounting plate for PCE-VDL series

Order no.: PCE-VDL MNT

PCE-VDL MNT optional mounting plate for PCE-VDL series

PCE-VDL MNT optional magnetic mounting plate for PCE-VDL 16I and PCE-VDL 24I logger

Manufacturer: PCE Instruments



What's In The Box:

1x Data logger PCE-VDL 16I
1x Data cable USB – USB Micro
1x 4 GB SD memory card
1x SD card ejector tool
1x USB pen drive with PC software and user manual
