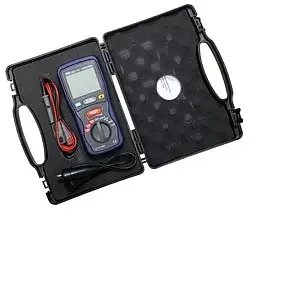

PCE Insulation Tester PCE IT55

Alat Ukur Lainnya Deskripsi produk DESCRIPTION Insulation Tester PCE-IT 55 CAT III 1000V / For insulation resistance up to 2000 MΩ The PCE-IT 55 Insulation Tester determines insulation resistance up to a maximum of 2000 MΩ (for auxiliary voltages of 250, 500 and 1000V). This Insulation Tester also offers the ability to measure alternate and continuous currents up to a maximum 750V / 1000V and resistance up to 2 kΩ. Includes test current and a warning whistle. The device meets with these standards: DIN 57 411 part 1 / VDE 0411 part 1, protective measures for electronic devices (IEC1010-1) and DIN VDE 0413 (Insulation Tester). It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations. HIGHLIGHTS - Meets the standards: IEC1010-1, CAT III 1000V - Has a large dual, backlit display - Individual or prolonged measurements can be made by pressing the "lock" key - Indicates overload and battery level - Auto shut of to conserve battery power - Comes ready to use in its own carrying case - Optional ISO calibration certificate SPECIFICATION Measurement ranges: Voltage AC Voltage DC Resistance Insulation resistance 0 ... 750V 0 ... 1000V 0 ... 200 Ω / 200 ... 2000 Ω 0 ... 200 MΩ / 200 ... 2000 MΩ Resolution Voltage AC Voltage DC Resistance Insulation resistance 1V 1V 0.1 Ω / 1 Ω 100 kΩ to1 MΩ Accuracy Voltage AC Voltage DC Resistance Insulation resistance ±1.2% ± 10 digits ±0.8% ± 3 digits ±1.0% ± 2 digits ±3.5% ± 5 digits Test voltages 250V - 200 MΩ 500V - 200 MΩ 1000V - 2000 MΩ Test current Whistle: ≤40 Ω, test current ≤200-mA Power 6 AA batteries Operating conditions 0 ... 40°C / 32 ... 104°F, <80% r.h. Dimensions 200 x 92 x 50 mm / 7.9 x 3.6 x 2 in Weight 700 g / 1.5 lbs Standards IEC10101, CAT III 1000V DELIVERY SCOPE 1 x PCE-IT 55 Insulation tester 1 x Test cables 1 x Extractable clamp with 1 m / 3.3 ft cable 6 x Batteries 1 x Carrying case 1 x User's manual (see image)
