Spesifikasi AEMC Cable Locator Model 6681

Cari berbagai macam dari pilihan terlengkap Alat Tester Kabel.

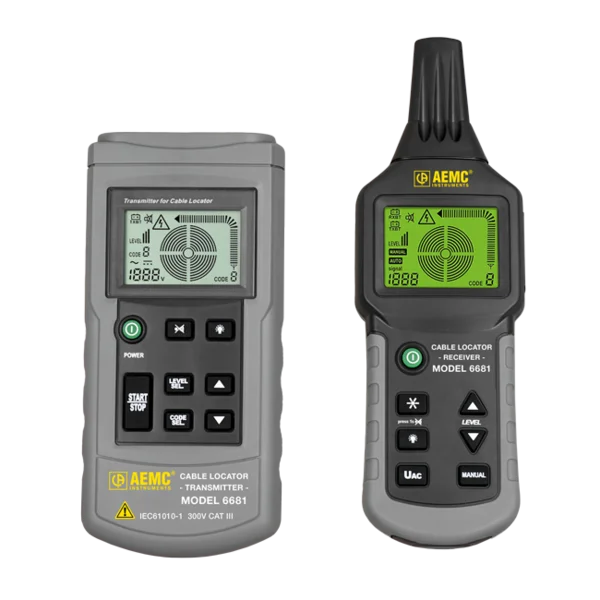

AEMC Cable Locator Model 6681

Cat. No. 2127.85

The AEMC Cable Locator Model 6681 detects buried (in ground or in walls) telecommunications cables, electric power and other cables, and metal pipes, during modification or maintenance work on installations of category III (or lower), at voltages of 300V (or less) with respect to ground. The system can locate open circuits, shorts, track cables and locate fuses or circuit breakers. The instrument is a portable system that includes a transmitter, a receiver, and accessories. The transmitter and receiver both have a large back-lit LCD and large keys.

The transmitter applies a modulated AC to the circuit that is to be located, which creates a proportional alternating electric field. The transmitter is also an AC/DC voltmeter; the display of the measured voltage is accompanied by a symbol warning of the presence of a voltage. In addition, the transmitter has a self-test function, indicating good transmission between transmitter and receiver. Both the transmitter and receiver units include a flashlight feature that assist the operator when working in dark unlit areas.

Specifications

External Voltage Measurement Range	12 to 300Vac/dc
Output Signal Frequency	125kHz
Functions	Digital Coding, Selectable Signals, Flashlight
Display	LCD Screen with display of functions and bargraph
Power Supply	9V battery
Dimension	7.48 x 3.5 x 1.67” (190 x 89 x 42.5mm)
Weight	12oz (360g) with battery
Electrical Safety	300V CAT III

6681 - RECEIVER
Detection Depth: Single-Pole Application	0 to 6ft (0 to 2m)
Detection Depth: Two-Pole Application	0 to 1.6ft (0 to 0.5m)
Simple Looping Line	Up to 8.2ft (2.5m)
Line Voltage Detection	Approximately 0 to 1.3ft (0 to 0.4m)
Functions	Auto Shutdown, Adjustable or Automatic Reception Sensitivity, Flashlight
Display	Backlit LCD with display of functions and bargraph
Power Supply	6 x 1.5V AAA battery
Dimension	9.5 x 3.07 x 1.5” (241.5 x 78 x 38.5mm)
Weight	14.81oz (420g) with battery
Electrical Safety	300V CAT III

Accessories

2118.49

Adapter - 110V Outlet Adapter w/4mm Banana Plugs for Models L230, L260, L261, L562, 8220 & 8230

2152.27

Lead - Set of 2, color-coded (Red/Black) leads & clips, 1 bk test probe

5000.79

Mini Ground Rod for use with Cable Locator Model 6681

5000.81

Replacement Soft Carrying Case for Cable Locator Model 6681
