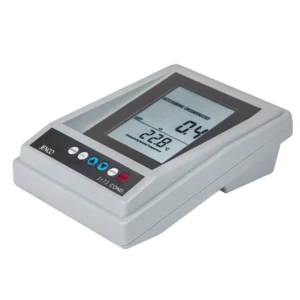

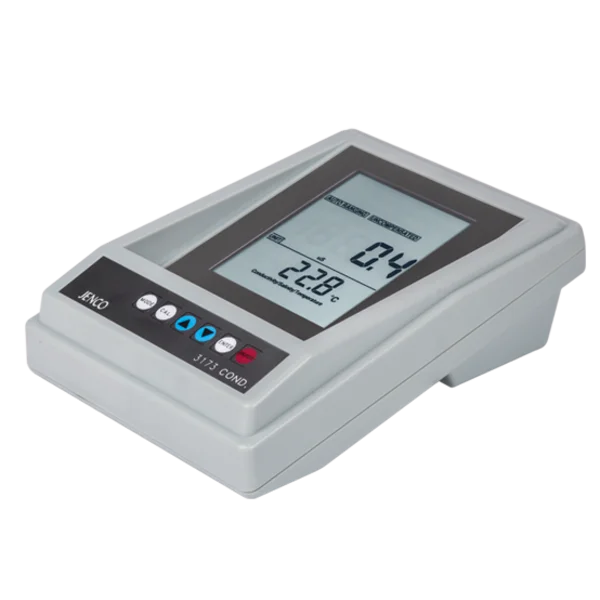

Jenco 3173 Microcomputer Based Conductivity/Salinity/TDS & Temperature Bench Meter

Jenco 3173 Microcomputer Based Conductivity/Salinity/TDS & Temperature Bench Meter

Water resistant, easy to use, benchtop Conductivity/TDS/Salinity meter with 3 selectable cell constants.

Water resistant, easy to use, benchtop Conductivity/TDS/Salinity meter with 3 selectable cell constants.  Conductivity/TDS/Salinity/Temperature benchtop meter, with an extra large LCD display, adjustable cell constants K=0.1, 1.0, 10.0, programmable temperature co-efficient and reference temperature.  Battery or 100 ~ 240 VAC powered.  CE approved.

• Clear, large LCD display (4 1/8 x 3 1/16 in.)
• Displays Conductivity/TDS/Salinity and temperature readings at the same time
• Accepts 2-wire conductivity cells with adjustable k=0.1, k=1 and k=10 cell constants for improved flexibility and accuracy
• Auto or manual ranging of 3 conductivity ranges are available for improved usability
• Convenient one point calibration. calibration data is stored in memory and is ready for use on power up
• Readings are automatically compensated for temperature (ATC).
• Intuitive operation with membrane keypad with tactile and audio feedback
• Splash resistant case is made with durable, reinforced plastic for added protection. protective covers for connectors are included
• Large LCD is offset for improved protection against unintentional damage
• Smaller case does not clutter valuable desk space
• 8pin DIN connector for conductivity cell & 10k thermistor
• AC adaptor or battery power

Specification

• Conductivity Range K=0.1: 0.00 uS/cm to 2000 uS/cm
• Conductivity Resolution K=0.1: 0.01 uS/cm, 0.1uS/cm, 1 uS/cm
• Conductivity Accuracy K=0.1± 0.5 % F.S.
• Conductivity Range K=1: 0.0 uS/cm to 20.00 mS/cm
• Conductivity Resolution K=1: 0.1 uS/cm, 1 uS/cm, 0.01 mS/cm
• Conductivity Accuracy K=1: ±0.5% F.S.
• Conductivity Range K=10: 0 uS/cm to 200.0 mS/cm
• Conductivity Resolution K=10: 1 uS/cm, 0.01 mS/cm, 0.1 mS/cm
• Conductivity Accuracy K=10: ± 0.5 % F.S.
• TDS Range K=0.1: 0.00 ppm to 1000 ppm
• TDS Resolution K=0.1: 0.01 ppm, 0.1 ppm, 1 ppm
• TDS Accuracy K=0.1: ± 0.5 % F.S.
• TDS Range K=1: 0.0 ppm to 10.00 ppt
• TDS Resolution K=1: 0.1 ppm, 1 ppm, 0.01 ppt
• TDS Accuracy K=1: ± 0.5 % F.S.
• TDS Range K=1: 00 ppm to 100.0 ppt
• TDS Resolution K=1: 01 ppm, 0.01 ppt, 0.1 ppt
• TDS Accuracy K=10: ± 0.5 % F.S.
• Temperature Range: -10.0 to 120.0 °C
• Temperature Resolution: 0.1 °C
• Temperature Accuracy: ± 0.5 °C
• Reference Temperature: 15.0 to 25.0 °C, default 25.0 ℃
• Temperature Coefficient: 0.00 to 4.00%, default 1.91%
• Basic cell constant: K=0.1, k=1.0 or k=10, user selectable
• TDS Factor: 0.5
• Power Supply: 100 ~ 240 VAC adapter or AA x 6 batteries
• Calibration Backup: Yes
• Audio feedback: All touch keys
• Auto ranging: Yes
• LCD character size (main,temp): 21 mm, 16 mm high
• Ambient temp. range: 0 to 50 °C
• ATC probe: Thermistor, 10k ohm
• Dimensions (w x d x h ): 165 x 230 x 80 mm
• Weight: 650 grams (excluding batteries)
