Koehler K93700 Air Jet Erosion Tester

Koehler K93700 Air Jet Erosion Tester

Test Method

For determining the material loss by gas-entrained solid particle impingement erosion with jetnozzle type erosion equipment. It can be used in the laboratory to measure the solid particle erosion of different materials and has been used as a screening test for ranking solid particle erosion rates of materials in simulated service environments

Specification

1. Fluid - Air

        a) Temperature - ambient

        b) Pressure - 2 bar max.

        c) Nozzle - Tungsten Carbide

2. Particle

        a) Temperature - ambient

        b) Velocity - up to 100m/s max.

        c) Feed rate - 2 to 10 gm/min continuously variable

3. Specimen

        a) Size - 25mmX25mm max & thickness 5 mm

4. Impingement Angles - 150C, 300C, 450C, 600C, 750C, 900C

5. Nozzle size - 1.5 mm diameter (Tungsten Carbide)

6. Double disc arrangement for particle velocity measurement.

7. Erodent collection after testing in fully enclosed removable enclosure

8. Sound and dust proof chambers.

Features

• Conforms to ASTM G 76 standard
•  HMI (Human Machine Interface)
• Measurement of particle velocity
• Digital pressure regulator
• Variable particle feed
• User Friendly

Description

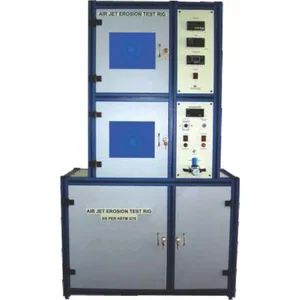

The Air Jet Erosion Test Rig has been developed to evaluate the erosion resistance of variety of materials and conforms to the specifications of ASTM G76 standard. The principle of operation consists of subjecting the test sample to a jet of air carrying the erodent, through a tungsten carbide nozzle of a known diameter. The impingement of the erodent particles on the test sample surface causes erosion and this is quantified by weight loss method. The particle velocity is controlled by varying the flow rate of air and the erodent feed rate is varied by changing the speed of the conveyor system which delivers the erodent to the jet of air. The particle velocity is measured with a well established method – Double Disc arrangement. The test sample temperature can be varied from ambient to 4000C and test sample inclination is infinitely variable 0-900 with respect to the jet of erodent particles.

Included Accessories

• Particle Velocity Meter (Double disc arrangement)
• Pressure Regulator and Gauge
• Pressure Gauge
• Operating and Maintenance Manuals
