Stuart SBS40 - Water Bath-Shaking (without platform) 230V

Stuart SBS40 - Water Bath, Shaking (without platform), 230V

• SBS40 Water Bath, Shaking (without platform), 230v
• Choice of linear or orbital shaking action
• Digital display and selection of temperature
• Low level water sensor
• Integral drain
• Range of accessories

A water bath with integral shaking, a choice of platform* is available to provide linear or orbital shaking action. The platforms require no special fitting and use strong magnets, which couple to the drive unit underneath the stainless steel tank. Vessels are securely held in place on the stainless steel platforms by a series of high-tension springs, which will accommodate almost any size and combination of vessel. The heater is mounted underneath the tank to allow easy cleaning. A low-level water sensor causes a warning to flash on the display to indicate when the water level is low, cutting power to the heater to prevent the bath from boiling dry. A drain is also incorporated to aid emptying of the bath. The platforms will accommodate the following Erlenmeyer flasks: 8 x 250ml, or 6 x 500, or 4 x 1000ml capacity.

The speed and temperature controls are easy to use. The shaking speed is adjustable and electronic feedback control ensures accurately maintained speed. The water bath temperature is set and monitored via the easy to read LED display. In addition, the design incorporates an over temperature protection system that tracks the set temperature and controls the heater in the event of a fault. Minimum set temperature is 10°C.

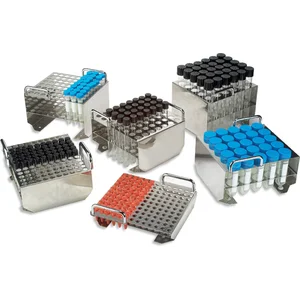

A range of stainless steel accessories is available designed to accommodate popular tube types ranging from 1.5ml micro tubes up to 50ml centrifuge tubes. A choice of cover is also available, designed to reduce heat loss and evaporation in either stainless steel or plastic. The polycarbonate cover allows the cover to be hinged either side of the bath depending on working conditions and preference.

Manufacturer Specs

Capacity 24L

Temperature range Ambient +5°C to 99.9°C

Temperature stability ±0.25°C

Shaking speed From 20 up to 150rpm

Shaking orbit/amplitude, mm 20

Internal dimensions, mm (w x d x h) 300 x 500 x 200

Overall dimensions, mm (w x d x h) 335 x 580 x 330

Net weight, kg, 17

Electrical supply 230V, 50Hz 1400W

IP Rating 31

Tech Specs

Water Baths Recirculating Heating Chillers Coolers

• Heating Capacity (Baths) 500 Watts
• Voltage (Life Science) 208-240 VAC Only
• Type (Chillers/Baths) Shaking Water Bath
• Max Temp (Chillers/Baths) 99.9 C
• Min Temp (Chillers/Baths) 5 C
• Reservoir Capacity (Baths) 24 L

Waterbath
