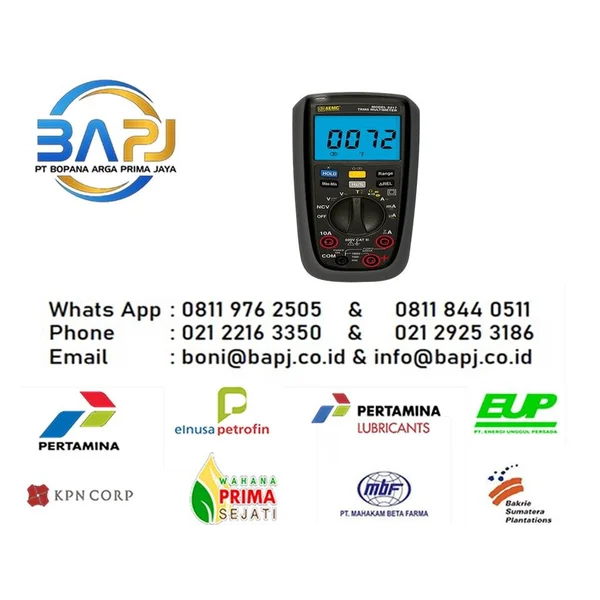

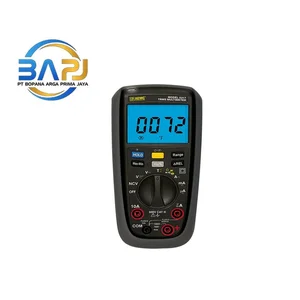

AEMC Digital Multimeter Model 5217 aemc

AEMC Digital Multimeter Model 5217 aemc

SPESIFIKASI DIGITAL MULTIMETER MODEL 5217

Merek/Model: AEMC Instruments 5217

Jenis: Multimeter Digital True RMS

Tampilan: LCD digital, 6.000 counts

Tegangan AC/DC: 750 V AC / 1.000 V DC

Arus AC/DC: Hingga 10 A

Resistansi: Hingga 60 MΩ

Frekuensi: Hingga 1 kHz

Kapasitansi: Hingga 100 mF

Pengukuran suhu: −55 hingga 1.200 °C

Fungsi tambahan: Uji kontinuitas, dioda, NCV, dan duty cycle

Fitur: Auto Range, Data Hold, MIN/MAX, dan VLowZ

Catu daya: 2 baterai AA 1,5 V

Dimensi/Berat: Sekitar 170 × 80 × 50 mm / 320 g

Kategori keselamatan: CAT III 600 V.

Catatan:

Pengukuran suhu memerlukan termokopel tipe K.

Periksa datasheet resmi untuk memastikan spesifikasi dan kelengkapan aksesori.

AEMC Digital Multimeter Model 5217 aemc

DIGITAL MULTIMETER MODEL 5217 SPECIFICATIONS

Brand/Model: AEMC Instruments 5217

Type: True RMS Digital Multimeter

Display: Digital LCD, 6,000 counts

AC/DC Voltage: 750 V AC / 1,000 V DC

AC/DC Current: Up to 10 A

Resistance: Up to 60 MΩ

Frequency: Up to 1 kHz

Capacitance: Up to 100 mF

Temperature Measurement: −55 to 1,200 °C

Additional Functions: Continuity, diode testing, NCV, and duty cycle

Features: Auto Range, Data Hold, MIN/MAX, and VLowZ

Power Supply: 2 × 1.5 V AA batteries

Dimensions/Weight: Approx. 170 × 80 × 50 mm / 320 g

Safety Category: CAT III 600 V.

Note:

Temperature measurement requires a type K thermocouple.

Refer to the official datasheet to verify specifications and included accessories.
