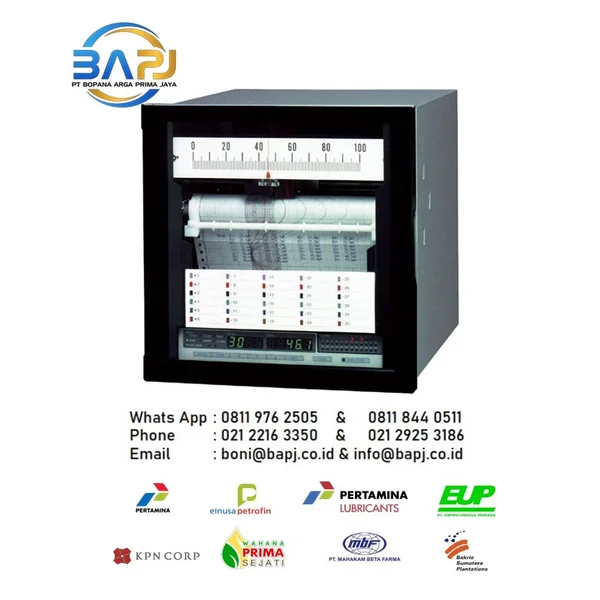

SK SATO 8097-00 Hybrid Recorder Model SKR-M18J

Cat. No.

Item

Model name

8097-60

Cartridge pen (red) x 5

HPSR001L0001

8097-62

Cartridge pen (blue) x 5

HPSR001L0002

8097-64

Cartridge pen (green) x 5

HPSR001L0003

8097-66

Cartridge pen (purple) x 5

HPSR001L0004

8097-70

Pen-type ribbon cassette

HPSR001H0003

8097-72

Dot-type ribbon cassette

HPSR001H0005

8097-80

Chart roll x 10

HZCAA1025AF001

8097-51

Scale plate

Cat. No.

8097-00

Product name

Hybrid Recorder

Model name

SKR-M18J

Type

Pen-type

Dot-type

Input

No. of points

1, 2, 3, 4

6, 12, 24, 30

Interval

125 ms

2.5, 5, 10 s per channel

Input signals

DC voltage: 4 mV wide, max. 20 mA

Thermocouple: R, S, B, K, E, J, T, C, N, PR40-20, PLII, U, L, Au- Fe

Thermistor: Pt100, Pt50, JPt100, Cu10Ω (0°C), Cu10Ω (25°C)

DC current: 4 to 20mA, a shunt resistor required in addition

Performance

Display accuracy

±0.5%

Noise rejection ratio

NMRR: more than 60 dB (50 or 60 ±0.5 Hz)

CMRR: more than 140 dB (50 or 60 ±0.5 Hz)

Insulation resistance

0.5 kVDC, 20 MΩ or up between each terminal and earth terminal

Withstand voltage

1.5kVAC for a min. from power to earth terminal

0.5kVAC for a min. from input terminal to earth terminal

Withstand vibration

10–60 Hz, 1 m/s

Withstand shock

2 m/s

Alarm

No. of points

8

Types

4 types (H，HH，L，LL)

Contact capacity

250 VAC, 3 A or 30 VDC, 3 A or 125 VDC, 0.5 A

Communication

RS-232C, RS-422A

Power

100–240 VAC, 65 VA

Robustness

Dustproof front panel

Dimensions

288 (W) x 288 (W) x 340 (D) mm

Weight

Less than 18.0 kg

Operation ambient

0 to 50°C, 35 to 85%rh

Recorder

Recording tool

Disposable felt-tip pen

Monochrome wire dot printer

6-color wire dot printer

Recording duration

N/A

5 s per channel

Chart paper

23 m (L) x 210 mm (W), folded width 60 mm

Chart feeding speed

1 to 3600 mm/h, 1 to 300 mm/min.

0 to 1800 mm/h

Recorded color

Red, blue, green, purple pens

purple, red, green, blue, brown, black dots
