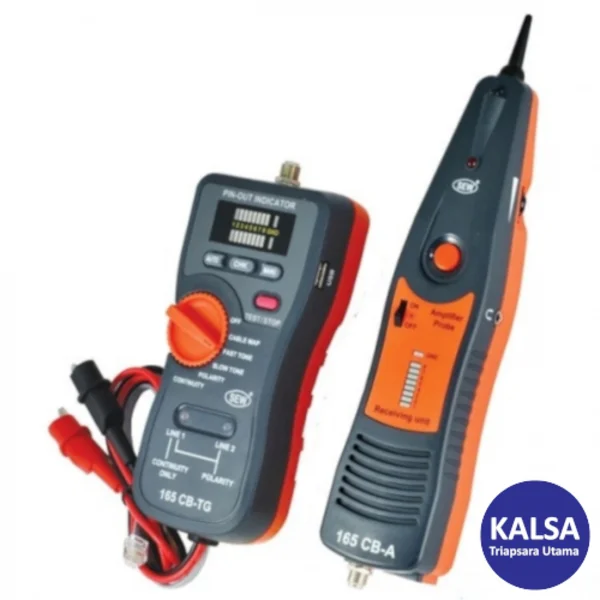

SEW 165 CB Multi-Purpose Cable Tester
Rp 1.000
/ Unit1 Unit
Pembelian Minimum- Stok 0
- Negara AsalTaiwan
- Dikirim DariGunung Putri, Kab. Bogor
- Kategori
- Update Terakhir2 Mei 2023
Spesifikasi SEW 165 CB Multi-Purpose Cable Tester
Cari berbagai macam dari pilihan terlengkap Alat Tester Kabel.SEW 165 CB Multi-Purpose Cable Tester
Specifications :
1. Operating temperature and humidity 0 °C ~ 40 °C, 80% max
2. Storage temperature and humidity -10 °C ~ 50 °C, 80% max
3. Accessories instruction manual, batteries, carrying case, self-test cable
4. Optional accessories BNC testing cables, multi-wire testing cables
Standards :
1. EN 61326-1
2. EN 55011
3. EN 61000-4-2
4. EN 61000-4-3
Master Unit and Tone Generator 165 CB-TG :
1. Display modules bi-colored LED
2. Waveform square wave
3. Frequency 1 kHz ± 15%
4. Over voltage protection 80V DC
5. Alternating tone fast and slow
6. Power source 9V battery
7. Dimension 180 x 82 x 43.8 mm
8. Weight 280 gram
Amplifier Probe and Receiving unit 165 CB-A :
1. Frequency Detection 1 Hz ~ 12 kHz
2. Receiver Distance < 50 cm
3. Sensitivity Control
4. Flash light
5. LED for signal strength
6. LED module
7. Power source 9V battery
8. Dimension 263 x 55 x 37.3 mm
9. Weight 210 gram
Features :
1. Auto-scan and manual-check function
2. Buzzer sound warning for wire status
3. With 2 led module indicators on the master unit
4. Ground (shielded) wire test, led indication for wire status
5. For testing RJ45/RJ11, USB, COAX, BNC cable, multi-wire cable
Alat Tester Kabel
Minta penawaran sekarang
