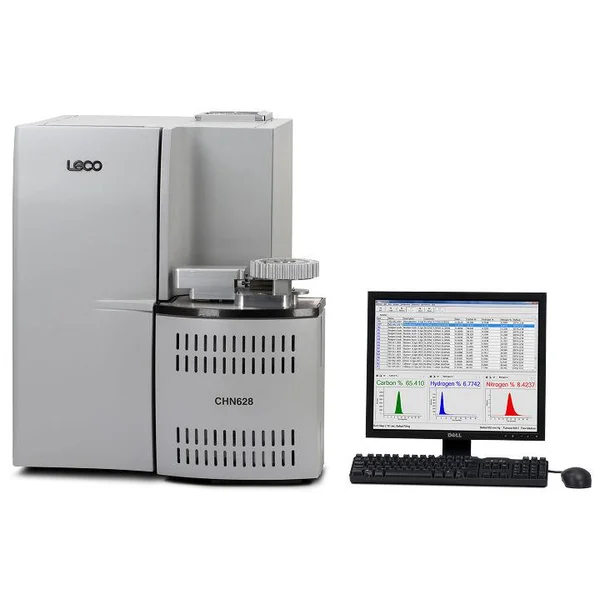

LECO Ultimate Analyzer CHN628

Ultimate Analyzer LECO

CHN Analyzer

Jual Ultimate Analyzer LECO CHN628

Jual Ultimate Analyzer

Harga Ultimate Analyzer LECO CHN628

Harga Ultimate Analyzer

Jual Carbon, Hydrogen, Nitrogen Analyzer

Harga Carbon, Hydrogen, Nitrogen Analyzer

CHN628 Series Elemental Analysis by Combustion
By incorporating state-of-the-art hardware and software technology with key improvements in
overall instrument performance and reliability, the CHN628 series allows you to achieve rapid and
precise results in diverse organic matrices from food to fuels. For optimum versatility, this instrument
is available in flexible configurations—nitrogen/protein, carbon/nitrogen, and
carbon/hydrogen/nitrogen.

Rapid Analysis Times and Integrated Automation
Maximize Throughput While Keeping
Cost-Per-Analysis Low
• Unique combustion gas handling and
aliquot dosing system significantly
extends the lifetime of the reagents used,
lowering cost-per-analysis and
instrument downtime, while eliminating
the need for chromatographic separation
techniques and other costly whole
gas analyses
• Simple, gravity-fed autoloader allows for
unattended analysis, while increasing
long-term reliability of loader
• Independent detectors used for
simultaneous elemental determination,
resulting in rapid analysis times

Improved Design and Accessibility
for Maintenance Areas
• To enhance safety and convenience, reagent and
reduction tubes are located on front side of the
instrument behind a cabinet door, along with
specially designed tools and storage to aid in
performing maintenance tasks
• Open access to ballast and pinch valve assembly
areas with quick-release features simplify preventive
maintenance routines
• Replacement tubing kits available with sealed
unions and fittings for fast, simple, and long-lasting
replacement of ballast flow path area

Additional Features and Benefits
• Maintenance-free autoloader with optional capacity
for up to 120 samples
• Complies with AOAC, ASTM, ISO, AACC, and ASBCapproved
methods of analysis
• Nitrogen and carbon/nitrogen configurations utilize
a stainless-steel pre-chiller block and thermoelectric
cooler to eliminate use of anhydrone for removal of
moisture in the furnace combustion gases

Options
• Sulfur add-on module provides independent sulfur
determination on macro samples (350 mg)
• High-temperature combustion technique allows
for sulfur analysis times of less than two minutes
• Nitrogen and carbon/nitrogen configurations available
with liquid autosampler to provide seamless operation
for liquid sample analysis up to 1 mL

Easy-to-Use Operating Software
Simplified data handling, customizable data reporting/exporting, and a number of user-defined settings make
the CHN628 software flexible and easy to operate. With virtually unlimited storage space and compatibility
with various Laboratory Information Management Systems (LIMS), this software is designed for seamless
interaction with any operator or customer environment. A convenient on-board help manual allows quick
access to information without leaving the instrument. The software also supports compliance to FDA
regulations 21 CFR Part 11 for a closed analytical system. Compatible to                        Remote Diagnostics
application.
