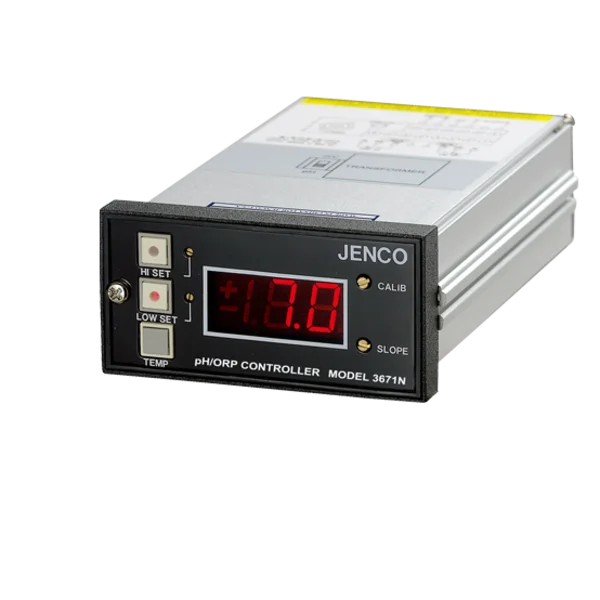

Jenco 3671N - pH/ ORP Controller

Jenco 3671N pH/ORP Controller

pH or ORP monitor/controller, analog voltage output , 2 relays, red LED display with pt-100 ATC.

1/8 DIN panel mount pH/ORP controller with dual SPDT Hi/Lo relays, manual set points and calibration are via potentiometers. Features a voltage/recorder output and an internal pH/ORP select switch. Display is a large bright red LED. Connectors are a BNC input and spade lug screw type connector block. Meter requires a Pt-100 ATC or a simulation resistor for temperature. Power115/230 VAC.

• All solid state design
• Low cost
• Easy to install
• Set points on front panel
• Recorder output
• 0.56 high efficiency red led display
• 1/8 DIN aluminum case
• Set points cover entire span
• ATC for pH 0 to 100 °C
• Internal pH/ORP select switch
• Low power consumption design, reduced internal heating thus increased reliability

Specification

• pH Range: 0 to 14.0 pH
• pH Resolution: 0.1 pH
• pH Accuracy: ±0.1 pH ± 1 digit
• ORP Range: -1990 to 1990 mV
• ORP Resolution: 10 mV
• ORP Accuracy: ±0.1% F.S. ± 1 digits
• Temperature Range: 0 to 100 °C
• Temperature Resolution: 1 °C
• Temperature Accuracy: ±1 °C ± 1 digit
• Input Impedance: >1012 ohms
• Temperature Compensation: Auto 0 to 100 °C
• Recorder Output (pH): 0.0 ~ 14.0 pH
• Recorder Output (mV): 0 to 1400 mV
• Dual Point on/off Control: pH or ORP with internal select switch
• Dead Band: ±0.1 pH for each set point
• Relay Output: 8 A at 115 VAC, 4 A at 230 VAC
• Readout: 0.56 high efficiency red LED display
• Power Source: 115 VAC/230 VAC ±15%, 50/60 Hz
• Dimension: 96 x 48 x 172 mm
• Weight: 690 g
