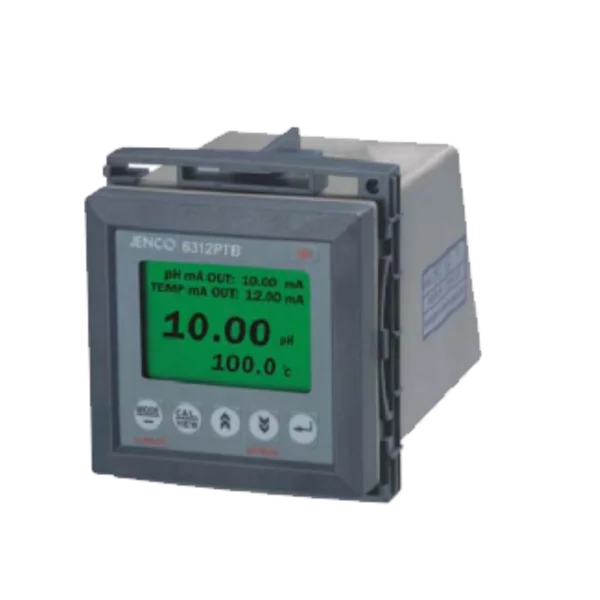

Jenco 6312PTB - pH / Temperature Controller

Jenco 6312PTB pH/Temperature Controller

pH/mV analyzer, dual current isolated reversible transmitters, RS-485, relays 2 high, 1 low and 1 temp.

pH, Temperature In-line Analyzer. 1/4 DIN, IP65, panel mount pH/Temp analyzer with two sets of 2 wire 4 ~ 20 mA current output, 2 sets of programmable on/off relay, RS-485 output and backlight.

• Graphic LCD with manual backlight displays pH, temperature, relay status, and transmitter current mA output.
• Automatic buffer recognition of US and NIST buffer sets. Calibration data is stored in memory and is ready for use on power up.
• Two sets of isolated and reversible 4 ~ 20 mA current output for pH and temperature allows it to be used as a proportional output.
• 4 programmable on/off relays: 3 for pH and 1 for temperature.
• RS-485 output for remote access allows multiple units to be connected and ganged together.
• Password protection.
• IP65.

Specification

• pH Range: -2.00 to 16.00 pH
• pH Resolution: 0.01 pH
• pH Accuracy: ±0.01 pH ± 1 digits
• Temperature Range: -10.0 to 120.0 °C
• Temperature Resolution: 0.1 °C
• Temperature Accuracy: ±0.1 °C ± 1 digit
• pH Buffer Recognition: (4.01, 7.00, 10.01) or (4.00, 6.86, 9.18), user selectable
• pH Electrode Offset Recognition: ±100 mV at 7.00 pH / -91.7 mV to 108.3 mV at 6.86 pH
• pH Electrode Slope Recognition: ±30% at 4.00, 4.01, 9.18 or 10.01 pH
• Temperature Compensation: Auto -10.0~120.0 °C (Thermistor, 10K ohm at 25.0 °C)
• Input Impedance: >1013 cmohms
• Current Output: Two current outputs for pH and temperature
• Current Output Range: 4 to 20 mA (isolated)
• Current Output Scale: User programmable ,linear
• Maximum Load: 500 ohm / 500 VDC
• Control Type: 2 ON/OFF controls
• Relay Output: 5 A at 115 VAC or 2.5 A at 220 VAC, resistive load only
• Digital output: RS-485
• Display: 128 x 64 graphical LCD with backlight
• Security: 4-dight password
• Power: 115 VAC or 230 VAC at 50/60 Hz
• Ambient Temperature Range: From 0 to 50 °C
• Weight: 950 grams
• Case: IP 65 ,1/4 DIN case, 148 mm depth
