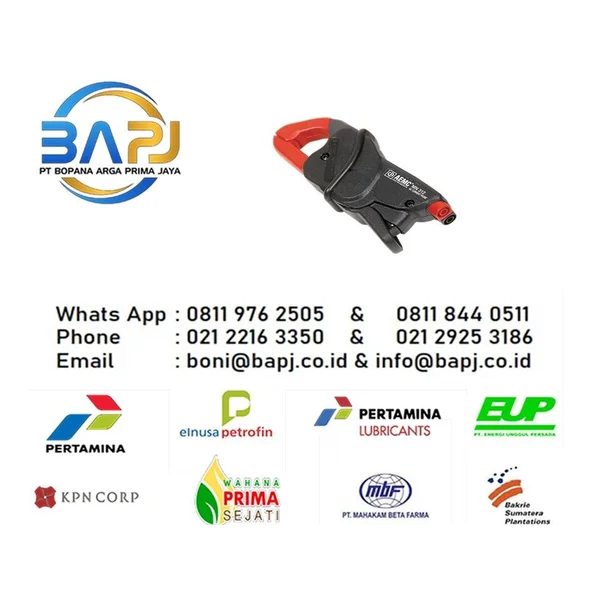

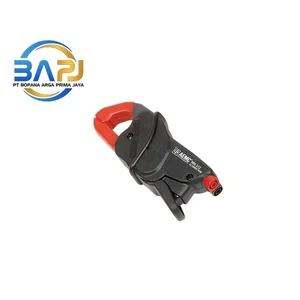

AC CURRENT PROBE – MN312

Merek: AEMC Instruments

Model: MN312

Cat. No.: 2116.24

Jenis: High-Accuracy AC Current Probe

Fungsi: Mengukur arus AC dengan akurasi tinggi dan phase shift rendah, cocok untuk DMM, data logger, recorder, power meter, dan oscilloscope.

Range: 150 A RMS AC

Rentang Pengukuran: 0,1–200 A AC

Output: 1 mA/A AC

Rasio: 1000:1

Akurasi: ±1% pada 80 A (50/60 Hz)

Frekuensi: 40 Hz–10 kHz

Phase Shift: ≤2° pada 20–80 A; ≤2,5° pada 80–150 A

Diameter Konduktor: Maks. 20 mm; busbar hingga 20 × 5 mm

Konektor: 2 × 4 mm safety banana jack

Load Impedance: 1 Ω

Overload: 200 A kontinu

Safety: 600 V CAT III

Protection: IP40

Suhu Operasi: -10°C hingga +55°C

Dimensi: 139 × 51 × 30 mm

Berat: ±180 g

Aplikasi: Panel listrik, industrial load, HVAC, instalasi residential/commercial, power measurement, dan data logging.

AEMC AC Current Probe Model MN312 aemc

Brand: AEMC Instruments

Model: MN312

Cat. No.: 2116.24

Type: High-Accuracy AC Current Probe

Function: High-accuracy, low-phase-shift AC current measurement for DMMs, data loggers, recorders, power meters, and oscilloscopes.

Range: 150 A RMS AC

Measurement Range: 0.1–200 A AC

Output: 1 mA/A AC

Ratio: 1000:1

Accuracy: ±1% at 80 A (50/60 Hz)

Frequency: 40 Hz–10 kHz

Phase Shift: ≤2° at 20–80 A; ≤2.5° at 80–150 A

Conductor Diameter: Max. 20 mm; busbar up to 20 × 5 mm

Connector: 2 × 4 mm safety banana jacks

Load Impedance: 1 Ω

Overload: 200 A continuous

Safety: 600 V CAT III

Protection: IP40

Operating Temperature: -10°C to +55°C

Dimensions: 139 × 51 × 30 mm

Weight: Approx. 180 g

Applications: Electrical panels, industrial loads, HVAC, residential/commercial installations, power measurement, and data logging.
