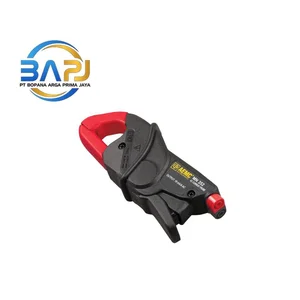

AC CURRENT PROBE – MN352

Merek: AEMC Instruments

Model: MN352

Cat. No.: 2116.26

Jenis: High-Accuracy AC Current Probe

Fungsi: Mengukur arus AC dengan output tegangan yang proporsional, cocok untuk DMM dan alat ukur dengan input tegangan.

Range: 150 A RMS AC

Rentang Pengukuran: 0,1–200 A AC

Output: 10 mV/A AC

Output pada 100 A: 1 V AC

Akurasi: ±1% pada 80 A (50/60 Hz)

Frekuensi: 40 Hz–10 kHz

Phase Shift: ≤2° pada 80 A (50 Hz)

Diameter Konduktor: Maks. 20 mm; busbar hingga 20 × 5 mm

Konektor: 2 × 4 mm safety banana jack

Input Impedance: 1 MΩ

Overload: 200 A kontinu

Safety: 600 V CAT III

Protection: IP40

Suhu Operasi: -10°C hingga +55°C

Dimensi: 139 × 51 × 30 mm

Berat: ±180 g

Aplikasi: Pengukuran arus AC, power measurement, power quality, troubleshooting, DMM, dan data logging.

Contoh Output:

10 A AC → 100 mV AC

50 A AC → 500 mV AC

100 A AC → 1 V AC

150 A AC → 1,5 V AC

AEMC AC Current Probe Model MN352 aemc

Brand: AEMC Instruments

Model: MN352

Cat. No.: 2116.26

Type: High-Accuracy AC Current Probe

Function: Measures AC current with a proportional voltage output, suitable for DMMs and voltage-input measuring instruments.

Range: 150 A RMS AC

Measurement Range: 0.1–200 A AC

Output: 10 mV/A AC

Output at 100 A: 1 V AC

Accuracy: ±1% at 80 A (50/60 Hz)

Frequency: 40 Hz–10 kHz

Phase Shift: ≤2° at 80 A (50 Hz)

Conductor Diameter: Max. 20 mm; busbar up to 20 × 5 mm

Connector: 2 × 4 mm safety banana jacks

Input Impedance: 1 MΩ

Overload: 200 A continuous

Safety: 600 V CAT III

Protection: IP40

Operating Temperature: -10°C to +55°C

Dimensions: 139 × 51 × 30 mm

Weight: Approx. 180 g

Applications: AC current measurement, power measurement, power quality, troubleshooting, DMMs, and data logging.

Output Example:

10 A AC → 100 mV AC

50 A AC → 500 mV AC

100 A AC → 1 V AC

150 A AC → 1.5 V AC
