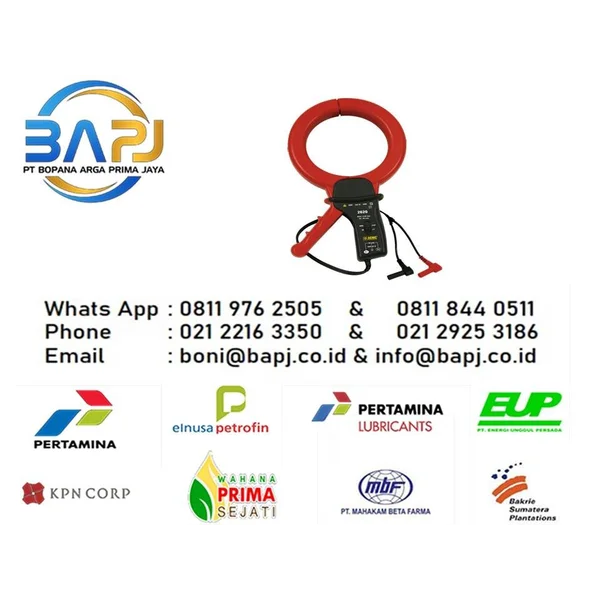

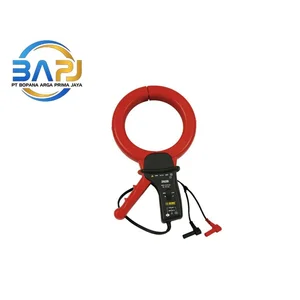

AEMC Leakage Current Probe Model 2620 aemc

AEMC Leakage Current Probe Model 2620 aemc

Rentang pengukuran: 500 µA–4 A dan 500 mA–400 A AC.

Sinyal keluaran: 1 mV/mA pada rentang 4 A dan 1 mV/A pada rentang 400 A.

Akurasi: Hingga ±0,35% dari pembacaan, tergantung rentang pengukuran.

Rentang frekuensi: 48–1.000 Hz.

Diameter bukaan rahang: 112 mm.

Impedansi masukan alat ukur: Minimum 1 MΩ.

Dimensi: 285 × 175 × 45 mm.

Berat: Sekitar 1,3 kg.

Suhu operasi: −10 hingga 55 °C.

Kelembapan operasi: Hingga 85% RH, tanpa kondensasi.

Kategori keselamatan: 600 V CAT III.

AEMC Leakage Current Probe Model 2620 aemc

Measurement range: 500 µA–4 A and 500 mA–400 A AC.

Output signal: 1 mV/mA on the 4 A range and 1 mV/A on the 400 A range.

Accuracy: Up to ±0.35% of reading, depending on the measurement range.

Frequency range: 48–1,000 Hz.

Jaw opening: 112 mm.

Measuring instrument input impedance: Minimum 1 MΩ.

Dimensions: 285 × 175 × 45 mm.

Weight: Approximately 1.3 kg.

Operating temperature: −10 to 55 °C.

Operating humidity: Up to 85% RH, non-condensing.

Safety rating: 600 V CAT III.
