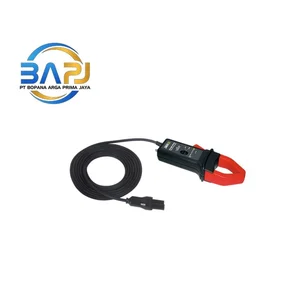

AEMC AC DC Current Probe Model MR193 BK aemc

AEMC AC DC Current Probe Model MR193 BK aemc

AC/DC Current Probe Model MR193-BK

Merek: AEMC Instruments

Model: MR193-BK

Nomor katalog: 2140.28

Jenis: Probe arus AC/DC

Rentang arus AC: 1–1.000 A AC

Rentang arus DC: 1–1.300 A peak (AC+DC)

Diameter konduktor maksimum: 42 mm (1 konduktor)

Panjang kabel: 3 m

Konektor keluaran: Konektor khusus AEMC

Akurasi tipikal: ±2,5%

Catu daya: Baterai alkaline 9 V

Daya tahan baterai: Sekitar 100 jam (tipikal)

Dimensi: 224 × 97 × 44 mm

Berat: 540 g

Suhu operasi: −10 hingga 55 °C

Perlindungan: IP40 (rahang tertutup), IP30 (rahang terbuka)

Kompatibilitas: AEMC Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, dan seri PEL.

AEMC AC DC Current Probe Model MR193 BK aemc

Brand: AEMC Instruments

Model: MR193-BK

Catalog number: 2140.28

Type: AC/DC current probe

AC current range: 1–1,000 A AC

DC current range: 1–1,300 A peak (AC+DC)

Maximum conductor diameter: 42 mm (single conductor)

Cable length: 3 m

Output connector: AEMC proprietary connector

Typical accuracy: ±2.5%

Power supply: 9 V alkaline battery

Battery life: Approximately 100 hours (typical)

Dimensions: 224 × 97 × 44 mm

Weight: 540 g

Operating temperature: −10 to 55 °C

Protection rating: IP40 (jaws closed), IP30 (jaws open)

Compatibility: AEMC Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, and PEL Series.
