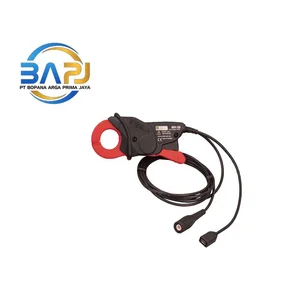

AEMC AC DC Current Probe Model MH60 aemc

AEMC AC DC Current Probe Model MH60 aemc

Merek: AEMC Instruments

Model: MH60

Jenis: Probe arus AC/DC

Teknologi sensor: Hall Effect

Rentang arus: 0,5–100 A AC / hingga 100 A DC

Arus puncak maksimum: 140 A peak

Bandwidth frekuensi: DC–1 MHz

Sensitivitas keluaran: 10 mV/A

Diameter konduktor maksimum: 26 mm

Konektor keluaran: BNC

Catu daya: Baterai isi ulang atau adaptor USB 5 V DC

Daya tahan baterai: Sekitar 8 ja

Panjang kabel: Sekitar 2 m

Dimensi: 138 × 49 × 28 mm

Berat: Sekitar 200 g

Suhu operasi: −10 hingga 50 °C

Kategori keselamatan: 600 V CAT II / 300 V CAT III

Aplikasi: Pengukuran arus AC/DC menggunakan osiloskop.

AEMC AC DC Current Probe Model MH60 aemc

Brand: AEMC Instruments

Model: MH60

Type: AC/DC current probe

Sensor technology: Hall Effect

Current range: 0.5–100 A AC / up to 100 A DC

Maximum peak current: 140 A peak

Frequency bandwidth: DC–1 MHz

Output sensitivity: 10 mV/A

Maximum conductor diameter: 26 mm

Output connector: BNC

Power supply: Rechargeable battery or 5 V DC USB adapter

Battery life: Approximately 8 hours

Cable length: Approximately 2 m

Dimensions: 138 × 49 × 28 mm

Weight: Approximately 200 g

Operating temperature: −10 to 50 °C

Safety category: 600 V CAT II / 300 V CAT III

Application: AC/DC current measurement using an oscilloscope.
