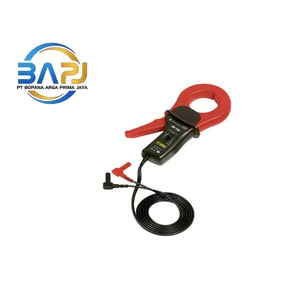

AEMC SR759 – AC CURRENT PROBE

Model SR759

Jenis Probe Arus AC Clamp

Rentang Arus 1 A / 10 A / 100 A / 1000 A AC

Rentang Pengukuran 1 mA–1,2 A / 0,01–12 A / 0,1–120 A / 1–1200 A

Output 1000 / 100 / 10 / 1 mV/A AC

Akurasi @ 50/60 Hz 0,7% ± 1 mV @ 1 A 0,5% @ 10 A 0,2% @ 100 A 0,2% @ 1000 A

Frekuensi 30 Hz – 3 kHz, dengan derating arus

Phase Shift @ 50 Hz 1° @ 1000 A

Konektor Safety Banana Plug 4 mm

Panjang Kabel 1,5 m

Bukaan Rahang 57 mm

Diameter Konduktor Maks. 52 mm

Overload 1200 A selama 15 menit ON / 30 menit OFF

Ukuran 111 × 216 × 45 mm

Berat ±550 g

Suhu Operasi −10°C hingga +50°C

Kelembapan Operasi 90% RH

Kategori Keselamatan 600 V CAT III

Proteksi IP40

Aplikasi DMM, logger, recorder, osiloskop, power meter, dan harmonic meter. (AEMC Instruments)

AEMC AC Current Probe Model SR759 aemc

Model SR759

Type AC Clamp Current Probe

Current Range 1 A / 10 A / 100 A / 1000 A AC

Measurement Range 1 mA–1.2 A / 0.01–12 A / 0.1–120 A / 1–1200 A

Output 1000 / 100 / 10 / 1 mV/A AC

Accuracy @ 50/60 Hz 0.7% ± 1 mV @ 1 A 0.5% @ 10 A 0.2% @ 100 A 0.2% @ 1000 A

Frequency 30 Hz – 3 kHz, with current derating

Phase Shift @ 50 Hz 1° @ 1000 A

Connector 4 mm Safety Banana Plug

Cable Length 1.5 m

Jaw Opening 57 mm

Max. Conductor Diameter 52 mm

Overload 1200 A for 15 minutes ON / 30 minutes OFF

Dimensions 111 × 216 × 45 mm

Weight ±550 g

Operating Temperature −10°C to +50°C

Operating Humidity 90% RH

Safety Rating 600 V CAT III

Protection IP40

Application DMMs, loggers, recorders, oscilloscopes, power meters, and harmonic meters. (AEMC Instruments)
