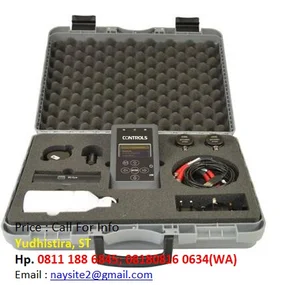

Ultrasonic Pulse Velocity Tester 58-E4810

Ultrasonic pulse velocity tester Brand/Supplied From : Controls - Italia Standard : EN 12504-4, ASTM C597 Kode Barang : 58-E4810 Kode Barang Sebelumnya (Sudah discontinued) : 58–E4800 ASTM C597 : 1.1 This test method covers the determination of the velocity of propagation of compressional waves in concrete. Fitur Utama : For the non destructive evaluation of concrete homogeneity and determination of Dynamic Elastic Modulus Ergonomic and compact Lightweight and portable Battery operated Large size digital display 128x64 pixel Digital calibration High price/quality ratio General Description : Introduction Hand portable light instrument, battery operated, microprocessor incorporated, supplied complete with two 54 kHz transducers (transmitter and receiver), calibration rod, 250 g of coupling agent, battery charger with interchangeable plugs, mini-USB cable for PC connection and power supply, dedicated data storage software (CSReader), instruction manual and rigid carrying case. Note Another advanced model of UPV tester is also available. See Ultrasonic pulse analyser PULSONIC model 58-E4900 with incorporated oscilloscope, suitable for determining the Dynamic Modulus of elasticity, the measurement of the Attenuation of the transmitted energy, the Spectrum analysis by FFT method, the Concrete strength evaluation combining the pulse velocity with the Rebound number of the concrete hammer (SonReb method), etc. Technical Specifications : Microprocessor incorporated. Battery operated up to 6h by internal rechargeable battery pack (Li-ion, 3.7 V, 1800 mAh) and External charger. Usable also during recharging time (about 2h if not in use). USB output (type mini -B) to connect power charger and PC. Connectable to oscilloscope. Analysis of compression waves P and Time of fly and transmission velocity waves. Pulse rate from 1 to 8 per second. Resolution 0.1 microseconds and accuracy of 2%. N.2 55kHz Transducers (diam 30mm, h 50mm). 3m cable, BNC connector for connecting transducers. Frequency range 20 to 150 kHz. Environmental working conditions: 0 – 40°C, 0-90% RH. Weight of the tester 0.3 kg, complete set 3 kg. Included in the rigid case Ultrasonic pulse velocity tester. Power charger to recharge its internal battery. USB cable for PC connection. USB key with documents and CSreader software for data management BNC cables to connect probes to the instrument. n° 2 ultrasonic probes (transducers). PVC sample (120mmx40mm) with known crossing speed for instrument calibration. 250gr gel for fixing probes to structural element. CSReader data storage software. Price : Call For Info Yudhistira, ST Alat Uji Kekerasan Beton
