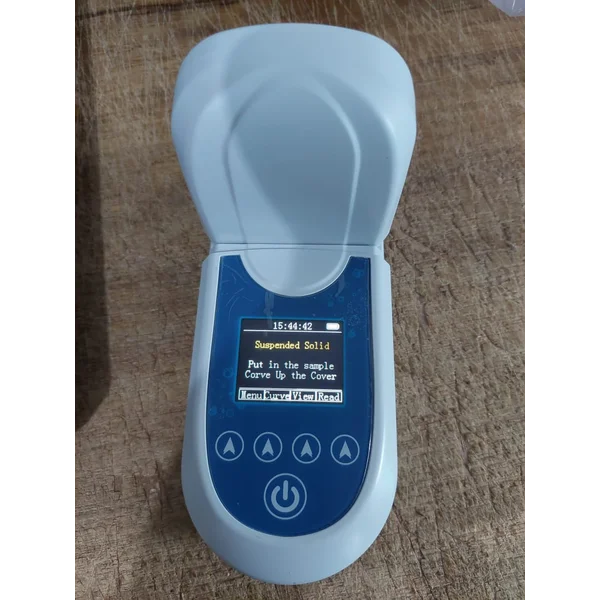

Lohand Low Range Turbidity Meter and TSS Meter

The portable turbidity/Total suspended solids analyzer combines the scattered light method and the transmitted light method, and uses a near-infrared light source to eliminate chromaticity interference. Two detectors, 90°and 180°, are set in the instrument.The 180°detector receives the transmitted light and the 90°detector receives the scattered light. Measure the ratio of the intensity of scattered light and transmitted light, and calculate the concentration of suspended solids and turbidity in the sample.

Place of Origin Zhejiang, China

Brand Name Lohand

Specification ;

Calibration 4 points calibration

(optional calibration solution) turbidity;

Zero drift ≤±0.1NTU

Working temperature 5 - 40℃

Storage temperature -10 - 55℃

Humidity 0-80%RH

Power lithium battery(Optional dry battery)

IP grade IP65

Size 170*72*44mm

Weight 290g

Our Advantages

Range

0~20NTU Turbidity;

0~1000NTU Turbidity

0~1000mg/L TSS

Indication error

±0.1NTU or ±5%NTU(0-20NTU Turbidity);

±0.3NTU or ±8%NTU(0-1000NTU Turbidity);

±0.3mg/L or ±8%mg/L(0-1000mg/L Tss)

Repeatability

<5NTU,≤±0.05NTU;≥5NTU,≤±1%NTU 0-20Turbidity

<10NTU,≤±0.1NTU;≥10NTU,≤±1%NTU 0-1000Turbid

<10mg/L,≤±0.1mg/L;≥10mg/L,≤±1%mg/L 0-1000TSS
