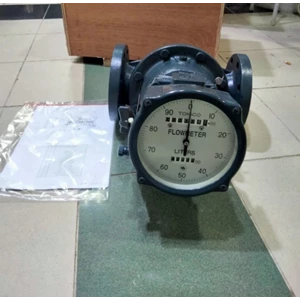

flow meter tokico 6 ''

Flow Meter Tokico 6 inch Spesification : Bore (mm) 150 Accuracy Standard : ±0.5% Optional : ±0.2% Flow Range 2 – 5mPa•s Diesel, Light Oil 15 – 180 m³/h Flow Range 5 ̴ 150mPa•s Diesel, Light Oil 8 – 180 m³/h Max. Working Pressure 10 kgf/cm² Hydraulic Test Pressure 20 kgf/cm² Max. Working Temperature Standard : 80°C Optional : 150°C Flange Rating JIS 10 kgf/cm² FF Material – Body Cast Iron Material – Rotor Cast Iron Counter Unit Totalizing counter (7 Digits) Reset counter (5 Digits) Flow Direction Right → Left Tokico Fgbb 423Bal-00X Atau 02X ( Reset 04X) = 0.5 Inch Tokico Fgbb 631Bdl-00X Atau 02X ( Reset 04X) = 0.75 Inch Tokico Fgbb 835Bdl-00X Atau 02X ( Reset 04X) = 1 Inch Tokico Fro 0438-04X = 40Mm / 1.5 Inch Tokico Fro 0541-04X = 50Mm / 2 Inch Tokico Frp 0845Baa-04X2-X = 80Mm / 3 Inch Tokico Frp 1051 = 100 Mm / 4 " Inch Oil Flow Meter Tokico FGBB Oil Flow Meter Tokico FRO Oil Flow Meter Tokico FRP Tokico FGB Size 15mm - 25 mm Tokico FRO Size 40 mm - 50 mm Tokico FRP Sizr 80 mm - 100 mm Flow Meter Tokico FGBB423 BAL -00X , Dia 15mm ( ½ ' ' ) Flow Meter Tokico FGBB631 BDL-00X , Dia 20mm ( ¾ ' ' ) Flow Meter Tokico FGBB 835 BDL-00X , Dia 25mm ( 1 ' ' ) Flow Meter Tokico FGBB423 BAL-04X , Dia 15mm ( ½ ' ' ) Flow Meter Tokico FGBB631 BDL-04X , Dia 20mm ( ¾ ' ' ) Flow Meter Tokico FGB835 BDL-04X , Dia 20mm ( 1' ' ) Flow Meter Tokico FRO0438-04X , Dia 40mm ( 1½ ' ' ) Flow Meter Tokico FRO0541-04X , Dia 50mm ( 2' ' ) Flow Meter Tokico FRP 0835 BAA-04X2-X , Dia 80mm ( 3 " ) Flow Meter Minyak Tokico 1 Inch , Jual Flow Meter Flow Meter Minyak Tokico 2 Inch , Jual Flow Meter Flow Meter Minyak Tokico 3 Inch , Jual Flow Meter Tokico Electronic CCG Flow Meter Tokico Pocketless CCG Flowmeter Tokico Roots & CCG Flow Meter
