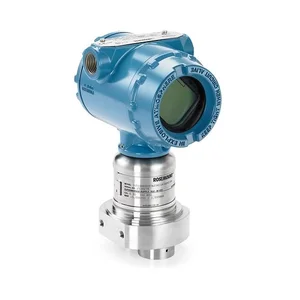

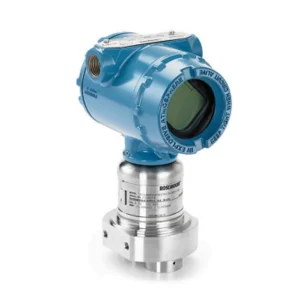

Rosemount™ 3051S High Static Differential Pressure Transmitter

The Rosemount 3051S High Static DP Transmitter is purpose-built for high-pressure applications, with the ability to withstand static line pressures up to 15,000 psi (1,034 bar). Engineered with the compact and rugged SuperModule™ platform, it delivers unmatched performance in demanding environments, offering both differential pressure and temperature measurements. The transmitter features Rosemount's innovative Coplanar™ technology, minimizing installation weight and simplifying high-pressure connections through a direct coned-and-threaded interface.

Key Features

• Exceptional High-Pressure Capability: Designed to handle static line pressures up to 15,000 psi (1,034 bar), making it ideal for extreme service conditions.

• Multivariable Measurement: Simultaneously measures differential pressure and process temperature for advanced process insights.

• Compact, Lightweight Design: The Coplanar™ platform reduces installation weight by up to 60% compared to traditional high-pressure transmitter designs.

• Superior Accuracy and Stability: All-welded, hermetically sealed SuperModule™ ensures industry-leading ±0.055% accuracy and long-term stability over a 10-year period.

• Flexible Communication Options: Supports 4–20 mA HART®, WirelessHART®, and FOUNDATION™ Fieldbus protocols to suit various integration requirements.

• Advanced Diagnostics: Includes intelligent diagnostics such as loop integrity, plugged impulse line detection, and process health monitoring.

• Certified for Safety: Independently certified for SIL 2/3 compliance according to IEC 61508 with prior-use approval for critical safety applications.

Specifications

• Warranty: Limited warranty up to 15 years.

• Rangedown: Up to 150:1 for flexible configuration across wide measurement ranges.

• Measurement Range: Differential pressure up to 150 psi (10.34 bar); static line pressure up to 15,000 psi (1,034 bar).

• Wetted Materials: Constructed with corrosion-resistant Alloy C-276 for enhanced durability in aggressive environments.

• Communication Protocols: 4–20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus.

• Diagnostics: Built-in diagnostics for loop verification, impulse line monitoring, and process analysis.

• Certifications: SIL 2/3 (IEC 61508), NACE compliance, hazardous area approvals, and other certifications available upon request.
