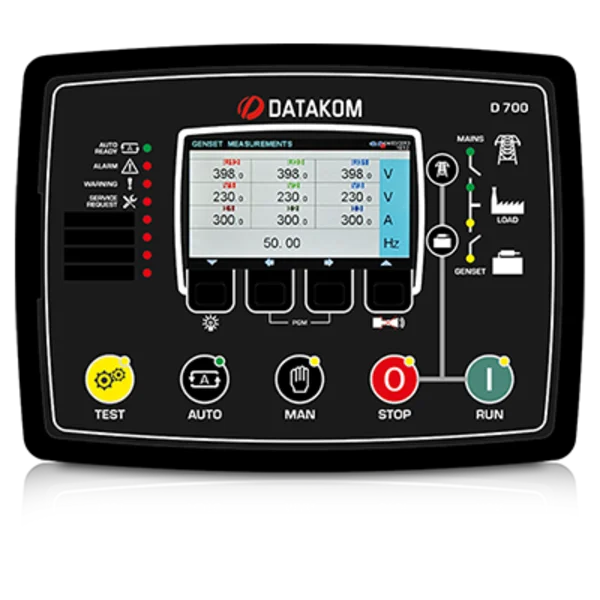

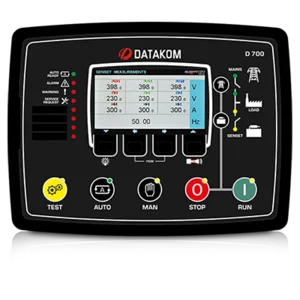

Modul Genset DATAKOM D-700 TFT SYNC Genset Controller Synch Version

Modul Genset Control Panel

DATAKOM D-700 Advanced Genset Synchronization Controller

FEATURES :

• 4.3” 480x272pixels color LCD
• Diesel and gas genset support
• Supports up to 48 gensets
• Automatic learning/self adjust
• Direct governor & AVR control
• Voltage and phase matching
• kW & kVAr load sharing
• Multiple topologies
• 6xCT, true mains metering
• True soft transfer in both ways
• Peak Lopping / peak shaving
• Mains de-coupling protection
• R.O.C.O.F protection
• Vector shift protection
• Reverse power protection
• Over/under freq. protection
• Over/under voltage protection
• Smart load management
• Smart genset sequencing
• Run/stop priority support
• Equal aging of gensets
• Base load (power export)
• Unmanaged distributed power export support
• AVR & GOV droop support
• Dead bus sensing
• 400Hz operation support
• 400 event logs, full snapshot
• All parameters front panel
  editable
• 3 level configuration password
• 128x64 graphical LCD display
• Downloadable languages
• Waveform display of V & I
• Harmonic analysis of V & I
• Synchroscope & check synch
• 12 configurable digital inputs
• Inputs expandable to 44
• 8 configurable digital outputs
• Outputs expandable to 40
• 7 configurable analog inputs
• Both CANBUS-J1939 & MPU
• 3 configurable service alarms
• Multiple automatic exerciser
• Weekly operation schedule
• Dual mutual standby with equal aging of  gensets
• Manual “speed fine adjust” on selected ECUs
• Automatic fuel pump control
• Disable protections feature
• Excess power protection
• Overload IDMT protection
• Load shedding, dummy load
• Multiple load management
• Current unbalance protection
• Voltage unbalance protection
• Fuel filling & fuel theft alarms
• Battery back-up real time clock
• Idle speed control
• Battery charge run enabled
• Combat mode support
• Multiple nominal conditions
• Contactor &  MCB drive
• 4 quadrant genset power counters
• Mains power counters
• Fuel filling counter
• Fuel consumption counter
• Modem & ethernet diagnostics
• Configurable through USB,
  RS-485, Ethernet and GPRS
• Free configuration program
• Allows SMS controls
• Ready for central monitoring ethernet & GPRS
• Mobile genset support
• Automatic GSM geo-location
• GPS connectivity (USB&RS232)
• Dynamic DNS support
• Easy USB firmware upgrade
• IP65 rating with standard gasket
