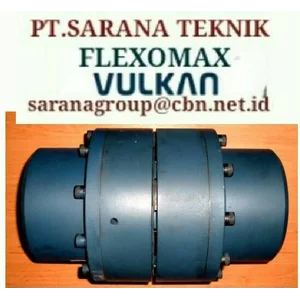

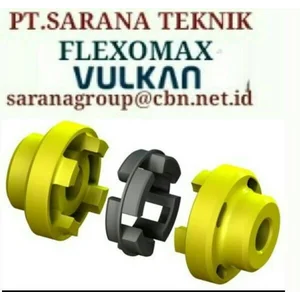

PT SARANA TEKNIK STOCKIST FLEXOMAX FLEXIBLE COUPLING VULKAN TYEPE G PT SARANA TEKNIK SIZE GG 194 GG 214 GG240 GG265 GG295

FLEXOMAX VULKAN COUPLING PT SARANA TEKNIK FLEXOMAX COUPLING TYPE G EQUAL WITH NORMEX COUPLING TYPE E

FLEXOMAX G

product image

Nominal Torque range
0.02 kNm - 48.60 kNm

Rotational Speed
1200 RPM - 1500 RPM

Product Key Facts

Product Description
Torsional flexible coupling equipped with elastic element working in compression. Suitable for motion reversals and multidirectional flexibility.

Applications
High Speed Shaft of machinery driven by electric motors.

Efficiency

    Allows for compensating axial, radial and angular misalignments
    Limited maintenance required
    Protects the drivetrain from shock loads

Tailor-made Solutions

    Modular design with high customisation degree possibilities
    Radial removability of the coupling without having to move the connected machinery
    Possibility of integrating braking discs or pulleys within the coupling

Design

    Available in different designs (G/GSN/GBN) - to satisfy the requirements of even the most restricted applications
    Reverse functionality
    Compact design

Downloads

Technical Data
Size  Nominal Torque  Max. Torque  Max Speed (Internal)  Max shaft Diameter
   TKN kNm  TKmax kNm  Internal  mm Dmax

50  20.500  4  12500  22
67  38.000  8  10000  32
82  81.000  16  8000  38
97  170.000  34  7000  48
112  270.000  54  6000  55
128  432.500  87  5000  65
148  675.000  135  4500  80
168  1125.000  225  4000  90
194  1800.000  360  3500  105
214  2700.000  540  3000  115
240  4320.000  860  2750  125
265  6750.000  1350  2500  130
295  9000.000  1800  2250  140
330  11700.000  2340  2000  170
370  16380.000  3280  1750  195
