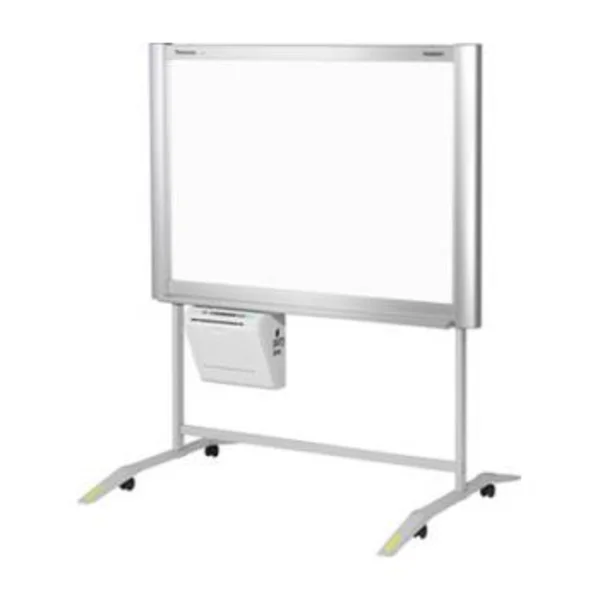

Panaboard PANASONIC UB-5365

Panaboard PANASONIC UB-5365

Specification :

• Power Supply : AC 100 – 120 V / AC 220 – 240 V, 50/60 Hz
• Power Consumption : Active Mode 70W Ready Mode 3W / Off Mode 0,5 W
• External Dimensions (H x W x D, without stand) : 1,372 x 1,465 x 212 mm (54.0 x 57.7 x 8.3 in.)
• Weight(without stand) : 29 kg (63.9 lbs)
• Operating Environment : Temperature: 10 – 35°C (50 – 95°F), Humidity: 30 – 80 % RH
• Input Block
• Panel Dimensions (H x W) : 900 x 1,262 mm (35.4 x 64.0 in.)
• Number of Sheets : 2 endless type
• Copying Area (H x W): 850 x 1,250 mm (33.5 x 63.5 in.)
• Scanning Resolution : Standard-size: 44dpi x 44 dpi
• Time Required for Scanning : Approx. 15 sec/sheet
• Scanning System : CIS (Contact Image Sensor)
• Paper Output Block
• Printing System : Fusion thermal transfer type
• Copy Paper : Standard / Recycled paper (60 – 90 g/m2 / 16 – 24 lbs)
• Copy Paper Size : A4
• Copy Density : 8 dot / mm
• Copy Colour : Monochrome
• Continuous Copies : 1 to 9
• Contrast Adjustment : Two levels: Normal / Dark
• 2-Screen Compressed Copying
• Memory Output Block
• Supported Memory Type : USB Flash Memory Device (Sold separately)
• USB Interface : Full Speed USB 2.0 (A-type connector)
• Supported Formats : FAT(FAT16)/FAT32 (up to 32 GB)
• Storage File Formats : TIFF, PDF
• Storage File Colour : Monochrome
• System Requirements
• Computer : IBM® PC/AT or compatible machine
• CPU : Intel® Pentium II or higher processor
• Interface : Full Speed USB 2.0 (B-type connector)
• Operating System : Windows® XP (SP3 or later), Windows Vista®, Windows® 7
• Included Accessories and Consumables : 2 Black Markers / Eraser / Thermal Transfer Film (starter roll) /
• Wall-Mounting Brackets / Power Cord

PANASONIC DOCUMENT MANAGEMENT SYSTEM
Panaboard Panasonic UB-5365 come with utility software that consists of Document Manager and Document Viewer. The meeting contents on the Panaboard screen will become meeting minutes with some annotation by Document viewer function. The Document Manager makes it easy to file and distribute the meeting minutes quite easily. Supported saving file format is BMP, TIFF, JPG, PNG and PDF

PRINTER DRIVER
The Panaboard can also work as a PC printer. In a meeing, if you need to print out some documents, the Plug & Play of USB makes it easy to print out documents from the Panaboard

TWAIN DRIVER
By just one click, you can scan the image on the Panaboard screen as image data to your computer and from your computer, you can control the Panaboard function just like operating the Panaboard control panel.
