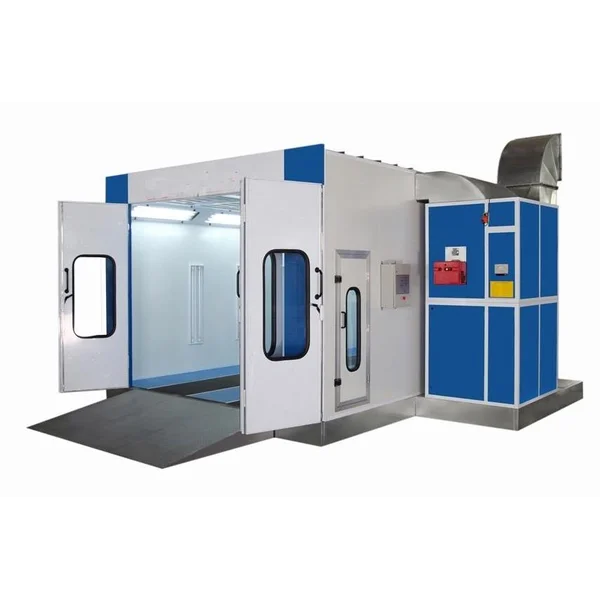

Oven Cat Mobil Spray Booth

Ruang Cat Oven untuk kendaraan
dengan menggunakan pemanas burner bahan bakar solar

Air return style: Full down draft, basement high
approx. 300mm
Front door structure: approx. 3 folded without
frame
Safe door: 1 piece in the side wall, min.
2000X800mm
Wall panel meterial: EPS ( Expanded polystyrene)
approx. 50mm, wall panel side with metal covered,
Steel thickness(mm): approx. 0.426
Top light: approx. 8X4X36W,
Side light: approx. 8X2X36W (Vertical)
Intake fan (KW): approx. 2X3.5KW
Exhaust fan (KW): approx. 1X7.5KW
Total power (KW): Max. 18.5KW

Generator frame:Iron frame with aluminum angle
Heat exchanger: stainless steel made, rear duct
Buner, Exhaust duct: 4M straight ducts, 2pcs of
elbows filter installed:hingle installed, mounted
above support frame
Fan capacity(M3/H): approx. 24000
Max drying temperature: 80℃
Motor Voltage: 380V/50HZ/3PH
