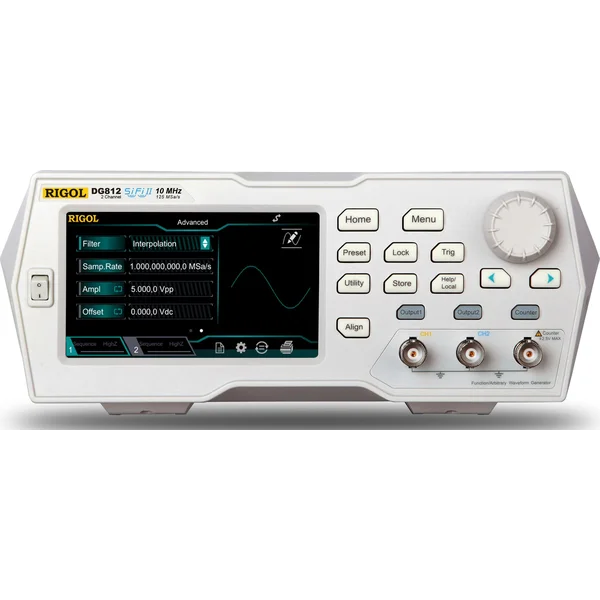

Function / Arbitrary Waveform Generator Rigol DG812 - 10 MHz 2 Channel

Function / Arbitrary Waveform Generator Rigol DG812 - 10 MHz 2 Channel

Minta penawaran

1 Unit

Pembelian Minimum

Harga tidak mengikat dan sewaktu-waktu dapat berubah. Dapatkan harga terbaik dengan klik tombol Minta Penawaran

Stok 0
Negara AsalChina
Dikirim DariBekasi Utara, Bekasi
Kategori
Signal Generator
Update Terakhir18 Sep 2026

Minta Penawaran

Cara Belanja Di Indotrading

Telepon

Spesifikasi Function / Arbitrary Waveform Generator Rigol DG812 - 10 MHz 2 Channel

Cari berbagai macam dari pilihan terlengkap Signal Generator.

Rigol DG812 - 10 MHz Function / Arbitrary Waveform Generator, 2 Channel

10MHz Function Generator, 2 Channel, 125MSa/sec, 16Bit Resolution, 2M Memory

10 MHz, two channel function generator
2 Mpts memory depth (upgradeable to 8 Mpts)
High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
Built-in high-order harmonic generator (at most 8-order harmonics)
Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
160 built-in arbitrary waveforms, covering common signals in engineering, medical and automotive electronics, math processing, and much more
Sample rate up to 125 MSa/s, vertical resolution 16 bits
Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through PC software
Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM
Standard waveform combine function - capable of outputting specified waveforms combined with basic waveforms
Standard channel tracking function - when enabled, all parameters of both channels are updated based on user's configurations
USB HOST and DEVICE interface (standard); USB-GPIB function supported
4.3" TFT color touch screen

DG800 Series Specifications
Model	DG812	DG811	DG822	DG821	DG832	DG831
Channel	2	1	2	1	2	1
Max. Frequency	10 MHz		25 MHz		35 MHz
Sample Rate	125 MSa/s
Waveform
Basic Waveforms	Sine, Square, Ramp, Pulse, Noise, DC, Dual-tone
Advanced Waveforms	PRBS, RS232, Sequence
Built-in Arbitrary Waveforms	160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.
Frequency Characteristics
Sine	1 μHz to 10 MHz		1 μHz to 25 MHz		1 μHz to 35 MHz
Square	1 μHz to 5 MHz		1 μHz to 10 MHz		1 μHz to 10 MHz
Ramp	1 μHz to 200 kHz		1 μHz to 500 kHz		1 μHz to 1 MHz
Pulse	1 μHz to 5 MHz		1 μHz to 10 MHz		1 μHz to 10 MHz
Harmonic	1 μHz to 5 MHz		1 μHz to 10 MHz		1 μHz to 15 MHz
PRBS	2 kbps to 10 Mbps		2 kbps to 20 Mbps		2 kbps to 30 Mbps
Dual-tone	1 μHz to 10 MHz		1 μHz to 20 MHz		1 μHz to 20 MHz
RS232	baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400
Sequence	2 k to 30 MSa/s
Noise (-3 dB)	100 MHz bandwidth
Arbitrary Waveform	1 μHz to 5 MHz		1 μHz to 10 MHz		1 μHz to 10 MHz
Resolution	1 μHz
Accuracy	±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃
