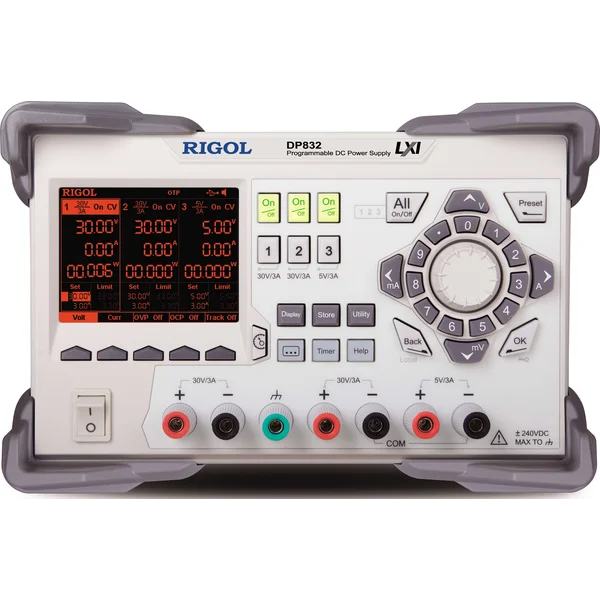

Triple Output 195 Watt Power Supply - Rigol DP832

Rigol DP832 Triple Output 195 Watt Power Supply

Power Supply with 2 0-30V/3A channels, 1 5V/3A channel, and 10 mV/10 mA measurement resolution

3 Outputs; total power up to 195W

Low Ripple Noise <350 uVrms/2mVpp

Fast transient response time: <50 us

Channel isolation: CH1 || CH2,CH3

OVP/OCP/OTP protection functions

Built in V, A, W measurements and waveform display

Support for output Delay, Analysis, Monitor, and Preset functions

3.5 inch FTF Display

Connectivity including USB Host & Device, LAN, and Digital IO

The Rigol DP832 is a very high-quality programmable laboratory power supply with three switchable outputs (+30 V/3 A, +30 V/3 A and +5 V/3 A) and a maximum power output of 195 W.

Like all Rigol devices, the power supply features a very well constructed and easy to use interface offering comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.

The Rigol DP832 features a relatively large (8.9 cm / 3.5") and easy to read TFT monochrome display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 2048 steps.

In The Box

Power cord

USB data cable

One shorted device

One fuse

Quick Guide

NIST calibration certificate for the DP832

Tech Specs

Power Supplies/DC Power Supplies Template

Outputs Triple

Voltage Output 1 Variable

Max Voltage Output 1 30 V

Programmable Yes

Current Output 1 Variable

Max Current Output 1 3 A

Voltage Output 2 Variable

Max Voltage Output 2 30 V

Current Output 2 Variable

Max Current Output 2 3 A

Voltage Output 3 Variable

Max Voltage Output 3 5 V

Current Output 3 Variable

Max Current Output 3 3 A

Meter Type Digital

Linear/Switching Linear

Max Display Resolution Current 10 mA

Max Display Resolution Voltage 10 mV

Constant current/voltage Yes

Remote Sensing No

Test Equipment General Attributes

Unique Features Low Ripple Noise: <350 uVrms/2mVpp

Fast Transient Response Time: <50us

Channel isolation: CH1 || CH2,CH3

Standard OVP/OCP/OTP protection functions

Standard Timing function

Built in V,A,W measurements and waveform display

Support Output Delay, Analysis, Monitor, Preset functions

Independent control for each channel

3.5 Inch TFT Display
