Spesifikasi Rigol DP832 Triple Output 195 Watt Power Supply

Cari berbagai macam dari pilihan terlengkap Power Supply Komputer.

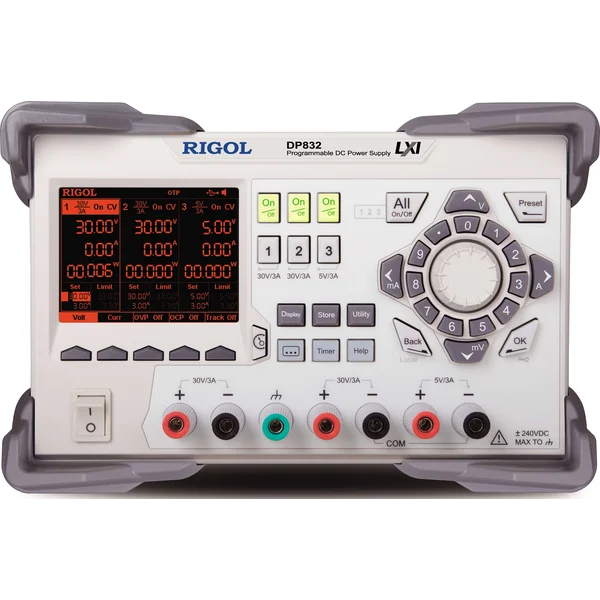

Rigol DP832 Triple Output 195 Watt Power Supply

The Rigol DP832 is a very high-quality programmable laboratory power supply with three switchable outputs (+30 V/3 A, +30 V/3 A and +5 V/3 A) and a maximum power output of 195 W.

Like all Rigol devices, the power supply features a very well constructed and easy to use interface offering comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.

The Rigol DP832 features a relatively large (8.9 cm / 3.5") and easy to read TFT monochrome display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 2048 steps.

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with 3 outputs and up to 195 Watts in total. With one channel isolated, users can reconfigure instruments into any number of systems or applications.

Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features mean there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.

Typical Applications

R&D Lab general purpose testing
Quality Assessment inspection
Bias power for RF/MW circuits
Automotive electronic test
Production testing
Device or circuit characterization and troubleshooting

RIGOL DP800 SERIES SPECIFICATIONS
Model		DP832A	DP832	DP831A	DP811A	DP821A
Channels		3			1	2
DC Output (0°C to 40°C )
Voltage/current		CH1: 0 to 30V/0 to 3A CH2: 0 to 30V/0 to 3A CH3: 0 to 5V/0 to 3A		CH1: 0 to 8V/0 to 5A CH2: 0 to +30V/0 to 2A CH3: 0 to -30V/0 to 2A	0 to 20 V/ 0 to 10 A (Low Range) or 0 to 40 V/0 to 5 A (High Range)	CH1: 0 to 8 V 0 to 10 A CH2: 0 to 60 V 0 to 1 A
OVP/OCP		CH1: 1mV to 33V/1mA to 3.3A CH2: 1mV to 33V/1mA to 3.3A CH3: 1mV to 5.5V/1mA to 3.3A	CH1: 10mV~33V/1mA~3.3A CH2: 10mV~33V/1mA~3.3A CH3: 10mV~5.5V/1mA~3.3A	CH1:1mV ~ 8.8V/0.1mA ~ 5.5A CH2:1mV ~ 33V/0.1mA ~ 2.2A CH3:-1mV ~ -33V/0.1mA ~ 2.2A	0.1 V to 22 V or 0.1 V to 44 V	CH1: 0.1 to 8.8 V 0.1A to 10.5A CH2: 0.1 to 66 V 0.1A to 1.1A
Load Regulation Rate ±(Output Percentage + Offset)
Voltage		<0.01%+2mV
Current		<0.01%+250uA
Linear Regulation Rate ±(Output Percentage + Offset)
Voltage		<0.01%+2mV
Current		<0.01%+250uA
Ripples and Noise (20Hz to 20MHz)
Normal Mode Voltage		<350μVrms/2mVpp
Normal Mode Current		<2mArms
Common Mode Current		<1.5μArms			Not specified
Annual Accuracy [1] (25°C ±5°C ) ±(Output Percentage + Offset)
Programming	Voltage	0.05% + 10mV		0.15%+ 5mA	0.05% + 10mV	CH1: 0.05% + 10mV CH2: 0.1% + 25mV
	Current	0.2% + 10mA		0.2%+10mA	0.1% + 10mA	0.2% + 10mA
Readback	Voltage	0.05% + 5mV		0.1%+20mV	0.05% + 10mV	CH1: 0.05% + 5mV CH2: 0.1% + 25mV
	Current	0.15%+ 5mA		0.2%+10mA	0.1% + 10mA	0.15% + 10mA
Resolution
Programming	Voltage	1mV	10mV With high-resolution option: 1mV	1mV	1mV	CH1: 1 mV CH2: 10 mV
	Current	1mA	1mA	CH1: 0.3mA CH2/CH3: 0.1mA	0.5mA	CH1: 1 mA CH2: 0.1 mA
Readback	Voltage	0.1mV	10mV With high-resolution option: 0.1mV	0.1mV	0.1mV	CH1: 1 mV CH2: 1 mV
	Current	0.1mA	1mA With high-resolution option: 0.1mA	0.1mA	0.1mA	CH1: 1 mA CH2: 0.1 mA
Display	Voltage	1mV	10mV With high-resolution option: 1mV	1mV	1mV	CH1: 1 mV CH2: 10 mV
	Current	1mA	10mA With high-resolution option: 1mA	1mA	1mA	CH1: 1 mA CH2: 0.1 mA
Transient Response Time
Less than 50μs for output to recover to within 15mV following a change in output current from full load to half load or vice versa.
Command Processing Time [2]
<100ms
Temperature Coefficient per? (Output Percentage + Offset)
Voltage		CH1/CH2: 0.01%+5mV CH3: 0.01%+2mV		0.01%+2mV	0.01%+3mV
Current		0.01%+2mA		0.02%+3mA	0.02%+3mA
Stability [3] ±(Output Percentage + Offset)
Voltage		CH1/CH2: 0.02%+2mV CH3: 0.01%+1mV		CH1: 0.03%+1mV CH2/CH3: 0.02% + 2mV	0.02%+1mV
Current		0.05%+2mA		CH1: 0.1%+3mA CH2/CH3: 0.05% + 1mA	0.1%+1mA

Tech Specs

Power Supplies/DC Power Supplies Template
Outputs	Triple
Voltage Output 1	Variable
Max Voltage Output 1	30 V
Min Voltage Output 1	0 V
Programmable	Yes
Current Output 1	Variable
Max Current Output 1	3 A
Min Current Output 1	0 A
Voltage Output 2	Variable
Max Voltage Output 2	30 V
Min Voltage Output 2	0 V
Current Output 2	Variable
Max Current Output 2	3 A
Min Current Output 2	0 A
Voltage Output 3	Variable
Max Voltage Output 3	5 V
Min Voltage Output 3	0 V
Current Output 3	Variable
Min Current Output 3	0 A
Max Current Output 3	3 A
Meter Type	Digital
Linear/Switching	Linear
Max Display Resolution Current	10 mA
Max Display Resolution Voltage	10 mV
Constant current/voltage	Yes
Remote Sensing	No
Test Equipment General Attributes
Unique Features	Low Ripple Noise: <350 uVrms/2mVpp Fast Transient Response Time: <50us Channel isolation: CH1 \|\| CH2,CH3 Standard OVP/OCP/OTP protection functions Standard Timing function Built in V,A,W measurements and waveform display Support Output Delay, Analysis, Monitor, Preset functions Independent control for each channel 3.5 Inch TFT Display
Warranty	3 YEARS
