Iskra Synchronization Meters Modul Lcd

If you are looking for manually or semi-automatically synchronise generators and bus bars, you have come to the right place. Our synchronization meters are truly unique products. They measure phase differences between generator and bus bar, voltages and the frequencies of the two systems. They can replace up to five instruments, occupying less space and giving you more information, for a lower price. Furthermore, they are equipped with status output, they are also appropriate for mounting on ships. They are equipped with LED diodes, so you can actually see the phase difference. When synchronising conditions are set, the synchronizing relay is activated.

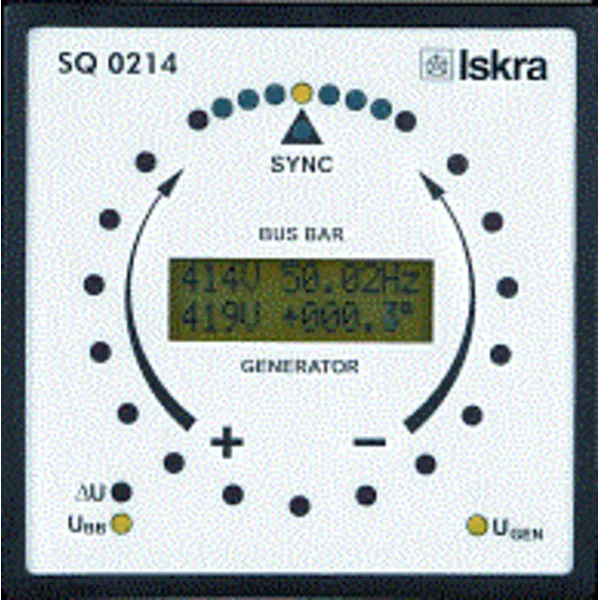

If you are interested in the phase difference between generator and bus bar, select SQ 0204. If you also want to have information about voltages and frequencies of the systems, select SQ 0214.

The ZQ 1207 or ZQ 1208 two-system frequency meter is used for measuring frequencies in two networks. The FQ 1207 or FQ 1208 double voltage meter measures voltages in two networks. The front frames of all the instruments measure 96x96 mm. Ship versions of the SQ 0204, ZQ 1207 and FQ 1207 meters are available on request.

The SQ 0201 phase sequence indicator is intended for determining phase sequences in a three-phase network, from 200 V to 500 V and from 50 Hz to 60 Hz. The indicator is provided with two built-in glow lamps indicating L1, L2, L3 phase sequence.
