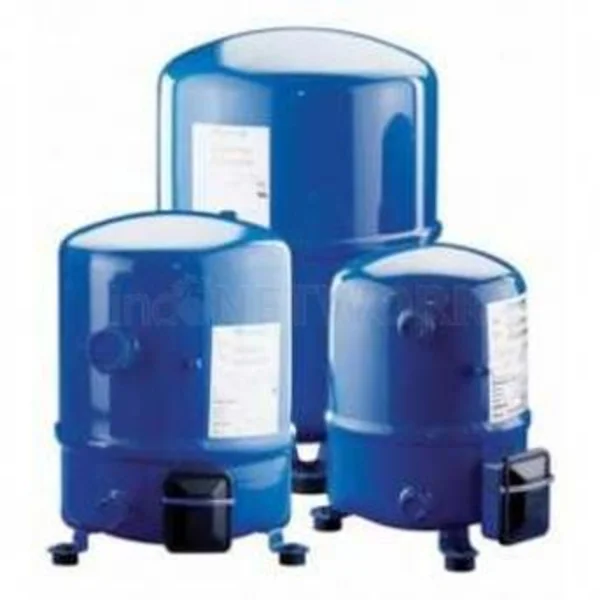

Kompresor AC Danfoss Maneurop MT50HK4CVE MT50-4VM

Kompresor AC Danfoss Maneurop MT50HK4CVE MT50-4VM

TYPE CODE MT
NET WEIGHT 37.00 Kg
APPROVAL STANDARDS CCC; CE; UL
BRAND TECHNIQUE Reciprocating compressor
CAPACITY CONTROL Fixed speed
COLOUR Blue
CONFIGURATION CODE Single
CONNECTION TYPE Rotolock
CYLINDER 2
DIAMETER [MM] 288
DISCHARGE CONNECTION HEIGHT [MM] 74
DISCHARGE CONNECTION MOUNTING TORQUE [NM] 90
DISCHARGE CONNECTION PIPE SIZE [IN] 3/4
DISCHARGE CONNECTION ROTOLOCK SIZE [IN] 1 1/4
DISCHARGE CONNECTION SIZE [IN] 1 1/4
DISCHARGE CONNECTION SLEEVE PIPE SIZE [IN] 3/4
DRAWING NUMBER 8502012g
ECONOMIZER No
FACTORY HP [BAR] 25
FACTORY LP [BAR] 25
FITTING REMARK (shipped with rotolock version only)
FITTING SLEEVE ODF
FITTING STANDARD Rotolock
FREQUENCY [HZ] 50/60
GP LP TORQUE [NM] 15
GAUGE PORT HP None
GAUGE PORT LP Schrader
GENERATION CODE D
GLASS MOUNTING Threaded
GLASS TORQUE [NM] 50
GROSS WEIGHT 39.50 Kg
HIGH VALUE OF NOMINAL VOLTAGE AT 50HZ [V] 400
HIGH VALUE OF NOMINAL VOLTAGE AT 60HZ [V] 460
HIGH VALUE OF VOLTAGE RANGE AT 50HZ [V] 460
HIGH VALUE OF VOLTAGE RANGE AT 60HZ [V] 506
IP PROTECTION CLASS IP55 (with cable gland)
LRA 47 A
LOW VALUE OF NOMINAL VOLTAGE AT 50HZ [V] 380
LOW VALUE OF NOMINAL VOLTAGE AT 60HZ [V] 460
LOW VALUE OF VOLTAGE RANGE AT 50HZ [V] 340
LOW VALUE OF VOLTAGE RANGE AT 60HZ [V] 414
MCC 12 A
MODEL NUMBER MT50HK4CVE
MOTOR PROTECTION Internal overload protector
MOUNTING TORQUE [NM] 15
NOMINAL COOLING CAPACITY 60 KBTU/H 50.17
NOMINAL COOLING CAPACITY AT 50HZ 11.2
NOMINAL COOLING CAPACITY AT 60HZ 14.7
NUMBER OF STARTS PER HOUR [MAX] 12
OIL CHARGE [L] 1.8
OIL EQUALIZATION 3/8'' flare SAE
OIL EQUALIZATION TORQUE [NM] 30
OIL REFERENCE 160P
PACKAGING HEIGHT [MM] 550
PACKAGING LENGTH [MM] 1150
PACKAGING WEIGHT [KG] 251
PACKAGING WIDTH [MM] 800
PACKING FORMAT Industrial pack
PACKING QUANTITY 6
PHASE 3
POWER CONNECTIONS Spade
REFRIGERANT R22
REFRIGERANT CHARGE [KG] [MAX] 5
RELIEF VALVE 30 bar/8 bar
ROTATIONAL SPEED AT 50HZ [RPM] 2900
ROTATIONAL SPEED AT 60HZ [RPM] 3500
SEGMENT USAGE Air conditioning; Refrigeration MT
SHIPPED FITTINGS Suction and discharge solder sleeves, rotolock nuts and gaskets
SHIPPED INSTRUCTIONS Installation instructions
SHIPPED MOUNTING Mounting kit with grommets, bolts, nuts, sleeves and washers
SHIPPED OIL Initial oil charge
SPEED PLATFORM Fixed-speed
SUCTION CONNECTION HEIGHT [MM] 265
SUCTION CONNECTION MOUNTING TORQUE [NM] 110
SUCTION CONNECTION PIPE SIZE [IN] 7/8
SUCTION CONNECTION ROTOLOCK SIZE [IN] 1 3/4
SUCTION CONNECTION SIZE [IN] 1 3/4
SUCTION CONNECTION SLEEVE PIPE SIZE [IN] 7/8
SWEPT VOLUME [CM3] 85.64
TECHNOLOGY Reciprocating
TEST HP [BAR] [MAX] 30
TEST LP [BAR] [MAX] 25
TEST DIF [BAR] [MAX] 30
TORQUE EARTH [NM] 2
TOTAL HEIGHT [MM] 413
TYPE DESIGNATION Compressor
VISCOSITY [CP] 32
WINDING RESISTANCE FOR THREE-PHASE COMPRESSORS WITH IDENTICAL WINDINGS [OHM] 3.96 Ohm
• ACOUSTIC HOOD 1 120Z0472
• ACOUSTIC HOOD 1 DESCRIPTION Acoustic hood for two-cylinder compressor
• ACOUSTIC HOOD 2 120Z0576
• ACOUSTIC HOOD 2 DESCRIPTION Acoustic hood for two-cylinder compressor
• ANGLE SET 7703013
• ANGLE SET DESCRIPTION Angle adapter set, C07 (1-3/4"~7/8"), C04 (1-1/4"~3/4")
• BELT 02 7773107
• BELT 02 DESCRIPTION Belt type crankcase heater, 65 W, 230 V, CE mark, UL
• BELT 03 7773117
• BELT 03 DESCRIPTION Belt type crankcase heater, 65 W, 400 V, CE mark, UL
• BELT 04 120Z0466
• BELT 04 DESCRIPTION Belt type crankcase heater, 65 W, 460 V, CE mark, UL
• DISCHARGE ANGLE 8168006
• DISCHARGE ANGLE DESCRIPTION Angle adaptor, C04 (1-1/4" rotolock, 3/4" ODF)
• DISCHARGE GASKET 8156131
• DISCHARGE GASKET DESCRIPTION Gasket, 1-1/4"
• DISCHARGE SLEEVE 8153008
• DISCHARGE SLEEVE DESCRIPTION Solder sleeve, P04 (1-1/4" rotolock, 3/4" ODF)
• DISCHARGE VALVE 8168029
• DISCHARGE VALVE DESCRIPTION Rotolock valve, V04 (1-1/4" rotolock, 3/4" ODF)
• EBOX COVER 8156134
• EBOX COVER DESCRIPTION Service kit for terminal box 80 x 96 mm, including 1 cover, 1 clamp
• GASKET SET 8156009
• GASKET SET DESCRIPTION Gasket set, 1", 1-1/4", 1-3/4", OSG gaskets black and white
• MOUNTING KIT 1 8156001
• MOUNTING KIT 1 DESCRIPTION Mounting kit for one and two-cylinder compressor, including 3 grommets, 3 bolts
• OIL 1 7754001
• OIL 1 DESCRIPTION Mineral oil, 160P, 2-litre can
• OIL EQUALIZATION CONNECTION 8153127
• OIL EQUALIZATION CONNECTION DESCRIPTION Oil equalisation nut
• OIL SIGHT GLASS 8156019
• OIL SIGHT GLASS DESCRIPTION Oil sight glass with gaskets (black and white)
• OIL SIGHT GLASS GASKET 8156145
• OIL SIGHT GLASS GASKET DESCRIPTION Gasket for oil sight glass (black chloroprene)
• PTC 120Z0459
• PTC DESCRIPTION PTC heater 27W, CE mark, UL
• STARTING DEVICE 1 7705006
• STARTING DEVICE 1 DESCRIPTION Electronic soft start kit, MCI 15 C
• SUCTION ANGLE 8168008
• SUCTION ANGLE DESCRIPTION Angle adaptor, C07 (1-3/4" rotolock, 7/8" ODF)
• SUCTION GASKET 8156132
• SUCTION GASKET DESCRIPTION Gasket, 1-3/4"
• SUCTION SLEEVE 8153013
• SUCTION SLEEVE DESCRIPTION Solder sleeve, P07 (1-3/4" rotolock, 7/8" ODF)
• SUCTION VALVE 8168032
• SUCTION VALVE DESCRIPTION Rotolock valve, V07 (1-3/4" rotolock, 7/8" ODF)
• VALVE SET 7703006
• VALVE SET DESCRIPTION Valve set, V07 (1-3/4"~7/8"), V04 (1-1/4"~3/4")
