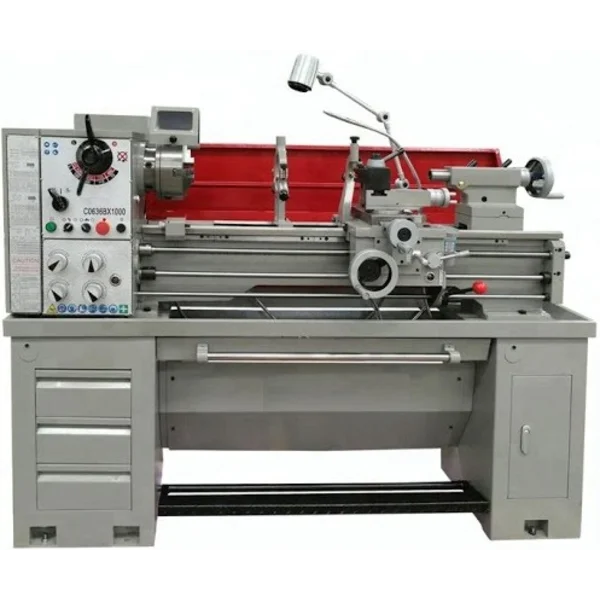

Mesin Bubut 1 Meter Bench Lathe Machine

Swing over bed

Φ360mm(14")

Swing over cross slide

Φ212mm(8-1/6")

Swing over gap

Φ491mm(9-1/3")

Distance between centers

1000mm(40")

Bed width

187mm(7-3/8")

Spindle bore and nose

A: Φ38mm(1-1/2") / D1-4 camlock

B: Φ52mm(2")/D1-5 camlock

Taper in nose

MT5

Speeds number

8 or 16(pole changeable motor:optional)

Speeds range

70-2000rpm or 35-2000 rpm(2 speed motor)

Leadscrew thread

8 TPI or 3mm pitch

Cutting tool max section

16×16mm(5/8"×5/8")

Threads imperial pitches

36 Nos. 8-112TPI or (34 Nos. 4-56TPI)

Thread metric pitches

28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)

Longitudinal feeds imperial

36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)

Longitudinal feeds metric

36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev)

Cross feeds imperial

36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)

Cross feeds metric

36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev)

Tailstock barrel taper and travel

MT3 100mm (3-15/16")

Main motor

1.5KW/3 PH or 1 PH

Cross slide travel

118mm(4-5/16")

Compoud rest travel

68mm(2-11/16")
