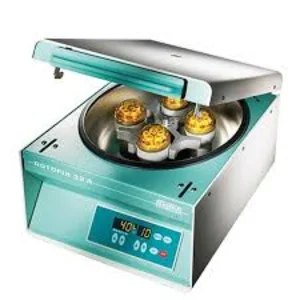

SPECIFICATION ROTOFIX 32A HETTICH
HIGHLIGHTS
- RPM: 500 - 6,000 min -1
Adjustable in increments of 100
- max. RCF: 4,226
- max. capacity: 4 x 100 ml / 6 x 94 ml
- choice of 9 rotors
- easy operation with keypad
- 2 individual deceleration stages
FEATURES
- metal housing and lid
- viewing port in the lid
- one-hand lid lock
- lid dropping protection
- emergency lid lock release
- stainless steel chamber
- automatic rotor recognition
- brushless drive
- error display
- imbalance monitoring and switch-off
- control panel with actual values of all
parameters
- auditory message after completion of
the centrifugation run
TECHNICAL DATA
ROTOFIX 32 A
non-refrigerated
voltage *) 208 – 240 V 1 ~
frequency 50 – 60 Hz
consumption 300 VA
emission, immunity EN/IEC 61326-1, class B
max. capacity 4 x 100 ml / 6 x 94 ml
max. RPM 6,000 min-1
max. RCF 4,226
running time 1– 99 min, continuous run, short cycle mode (impulse button)
dimesions (WxDxH) 366 x 430 x 257 mm
weight approx. 23 kg
noise 52 dB (A) with rotor 1628
Cat. No. 1206
100 – 127 V 1 ~ / 50 – 60 Hz *) 1206-01
emission, immunity FCC class B
Alat Laboratorium Umum
Harga ROTOFIX 32A HETTICH : CALL
