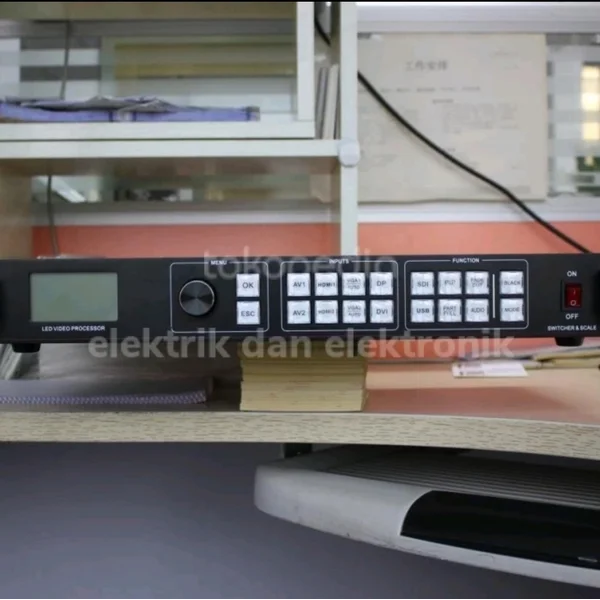

Video processor Amoonsky AMS LPV915S SDI

Video Input

Input Source 2 Composite Video PAL、NTSC、PAL-M/N、SECAM

2 VGA Input VESA Max 1920x1080@60Hz

1 DVI Input VESA Max 1920x1080@60Hz

1 DP Input VESA Max 1920x1080@60Hz

2 HDMI Input 480i/p、576i/p、720p、1080i/p

Color depth 8、10、12 bit

1 SDI（Expanding） 1080p 60/50/30/25/24/25(PsF)/24(PsF)

720p 60/50/25/24

1080i 1035i、625/525 line

Connector 3 BNC socket Composite、SDI Input

2 D-Sub VGA Input

1 DP socket DP Input

2 DVI-I(24+5) DVI Input

2 HDMI A Type(19pin) HDMI Input

1 DB9 socket RS232 Control

Resolution range 640x480～1920x1080 480i/p、576i/p、720p、1080i/p、

2048x1080；Point-point Sampling；Blanking

Video Processing

Analog sampling Each color 12 bit ;13.5 MHz (Video)

170 MHz (RGB)

Digital pixel data bit depth 8\10 \12 bit

Video Output

Out Source 1VGA RGBHV, RGBS, RGSB

2 DVI VESA

Connector 3 DVI-I(24+5) 2 DVI Programming Output, 1 DVI1-LOOP-OUT

, 1 VGA Programming Output

Output resolution

1024×768@60Hz 1024×1280@60Hz

1024×1920@60Hz 1280×720@60Hz

1280×1024@60Hz 1440×900@60Hz

1536×1536@60Hz 1600×1200@60Hz

1680×1050@60Hz 1920×1080@60Hz

1920×1200@60Hz 2048×640@60Hz

2048×1152@60H 2304×1152@60Hz

2560×816@60Hz 3840×640@60Hz

1280×720@50Hz 1920×1080@50H

Custom Output Resolution

General Specifications

Power Internal

100～240VAC，50～60Hz

Temp/Humi Storage: T: -40 ~ +70 ˚C /

H: 10% ~ 90%，Non-condensing

Working: T: 0 ~ +50 ˚C /

H: 10% ~ 90%，Non-condensing

Machine Size 485mm（length）x 345mm（width）x 65mm（Height）

Packing Size 530mm（length）x 425mm（width）x 120mm（Height）

Certification standards

EMI/EMC

FCC，ROHS

CE

MTBF 30,000 Hrs

Warranty 1 Years

NOTE: All average nominal voltage of ± 10%

included SDI
