Product Description:

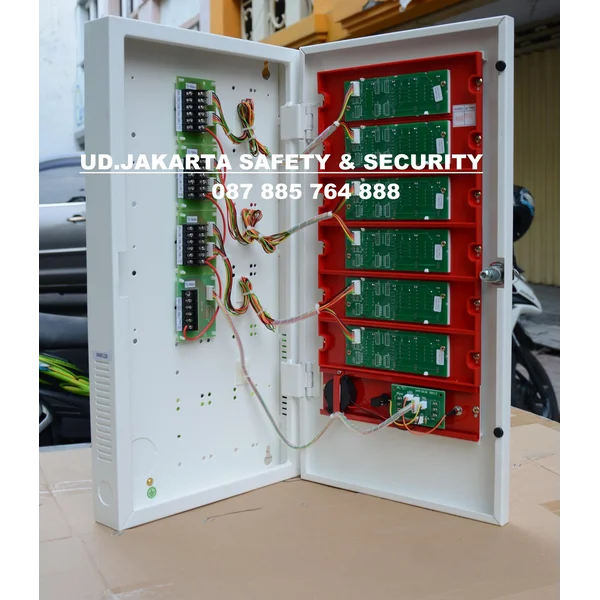

MCFA (Master Control Fire Alarm) / FACP.
The control panel and its components have met the CNS and CE certificate standards.
Affordable cheap price, with good quality and completeness that more than competintor existing deipasaran. This FACP / MCFA product is backed by warranty.
(*Terms and Conditions apply)

We also provide fire alarm accessories such as Detector Rate Of Rise, Fixed Temperature, Smoke Photoelectric, Call Manual Point, Break Glass Manual, Indicating Lamp LED, etc.

Specification:
Items Detail of Specification
Model No. YF-1 Zone 15
Power Supply (AC) AC 110V / 220V 50 / 60HZ
Stand-By Battery DC 24V
Voltage and Current Charger DC 26V Below 450mA, Fixed Voltage Trickle Charging
Circuit Voltage and Current DC 24V Short-Circuit Voltage 5V, Below 32mA
External Circuit Resistance To-and-fro below 50n
Detector Max 30 Differential Constant-temperature Detectors (DC24V 45u sdA)
For Each L
End-of-Line Resistor 10K n
Number Of Indicators Panel Circuits * 1.2 LED Indicator Light
Number Of Bells Panel Circuits * 1.2
Material 1.2mm ~ 2.0mm Standard Material
Main Audio Single-Tone Buzzer, Above 85dB
Remote Signal Contact No Voltage NO Contact Capacity AC 150V 7A * 2Set
Iron Rolling Door Control Compatible With AC110V / 220V

* Info:
- C / W Battery (1pc) + Telephone Hand Set (1pcs)
- Conventional System
- Guaranteed
Made in Taiwan
