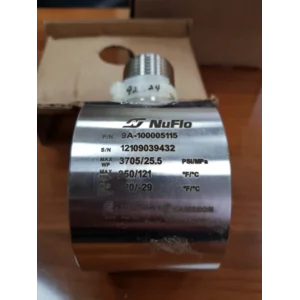

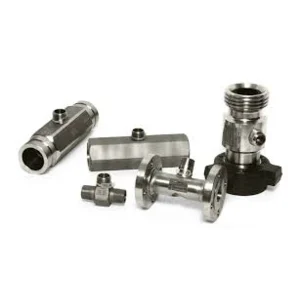

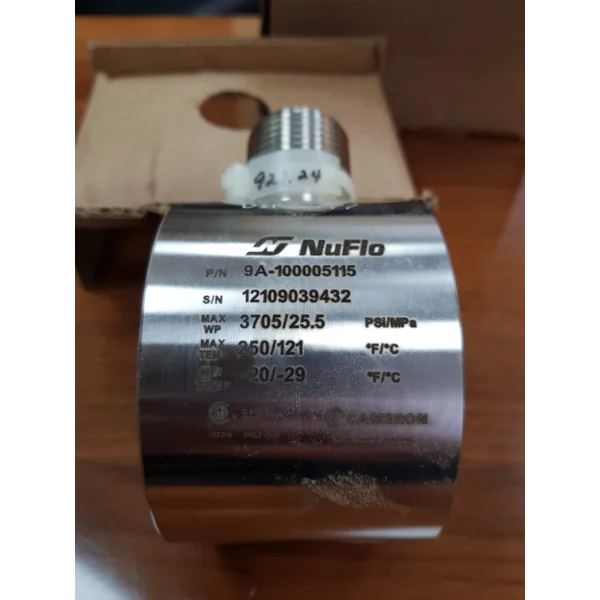

NuFlo EZ-IN® Series Liquid Turbine Flowmeter – 2" The NuFlo EZ-IN® Series Liquid Turbine Flowmeter by Cameron is a high-performance, between-flange flow measurement device engineered for accurate and reliable volumetric flow monitoring of clean liquids. Featuring a precision-balanced axial turbine rotor and magnetic pickup coil, it generates pulse signals directly proportional to the flow rate. With its robust stainless steel construction, wide flow range, and high pressure and temperature ratings, this meter is ideal for critical oil & gas and industrial process applications. Technical Specifications: • Manufacturer/Brand: Cameron (NuFlo Measurement Systems) • Series: EZ-IN® Series • Type: Liquid Turbine Flowmeter • Meter Bore Size: 2 inch • Installation Type: Between-flange (ANSI Raised Face or Ring Joint) • Body Material: Stainless Steel (typical) • Measurement Principle: Axial turbine, velocity-based • Signal Output: Frequency pulse (magnetic pickup coil) • Nominal Flow Range: 40 to 400 GPM (9.09 to 90.85 m³/h) • Calibration Factor: 55 pulses per gallon (approx. 14.5 pulses/L) • Max Output Frequency: 365 pulses/sec • Pressure Drop at Max Flow: 22 psi (152 kPa) • Max Working Pressure: Up to 6,170 psi (CL2500 flange) • Temperature Range: -20°F to 450°F (–28.8°C to 232°C), depending on pickup • Accuracy: ±1.0% of reading (Standard), ±0.5% optional (Industrial Grade) • Repeatability: ±0.1% • Compatible Pickup Coils: o 9A-100002077 (up to 250°F / 121°C) o 9A-100002076 (up to 450°F / 232°C) • Mounting Orientation: Horizontal or vertical (with upward flow) • Compliance: ANSI B16.5, ASME B31.3, NACE MR0175 / ISO 15156 • Typical Applications: Crude oil, refined fuels, chemicals, water, and other clean liquids
