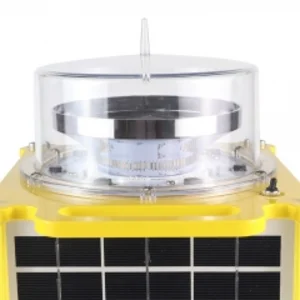

Lampu Suar Navigasi Portable 11-20Nm Solar Marine Lantern

Specification
Type:GS-LS/HT
Power Supply:Mono crystalline silicon solar panel
Battery capacity:12V24AH
Solar panel power:8W×4
Solar panel voltage:16.5V
Power consumption:≤20W
Visual range:11-20NM
Light source:LED
Storage temperature:-40℃～70℃
Working Temperature: -40℃～50℃
Weight:15kg
Continuous working  time in rainy day:  > 15days( work 10 hours a day)
IP Standard:IP68
Optional:GPS sync
Light Source Service Life:＞100000 hours
Optional Emitting Color:Red,white ,yellow ,green
Battery Type:Lead-acid battery
Battery life:3years
Solar panel life:＞20years
Vertical Divergence:≥8°
Horizontal Out-put:360°
Overall Size(mm):325mm×325mm×437mm
Installation Size: Pitch circle 270mm distributed 4M8 holes
Anti-wind Ability:80m/s
Working mode: Flashing, or 350 light characteristics
Optically Controlled Ambient Brightness:300LUX±100LUX
Standard:IALA

Function & Features
1.Continuous working time in rainy day can reach more than 15 days (10 hours a day).
2.Photocell can switch ON/OFF the light in rainy days or at night automatically.
3.Standardization of optical design, high photoelectric conversion efficiency.
4.Double light source design, it can improve service life for times and safety.
5.Special LED chips with brightness,high conversion efficient and long life.
6.Provide ability of lightning protection, light fastness, resist snow and rain.
7.LED technology, working stable, save cost of maintain.
8.With 350 light characteristics.
9.Optional GPS sync flash.

Usage notice
1.Please read the instruction carefully and then use the device correctly.
2.Solar powered Aviation obstruction light must be installed in a sunny place to keep it working continuously.
3.Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4.If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5.Please turn off the device and put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6.If there any other problem please contact us.

Application
High building
Bridge
Tower
Telecom tower
Chimney
Runway
Heliport
Traffic barrier
Tower crane
Sailing
buoys
lighthouse

Lampu navigasi
