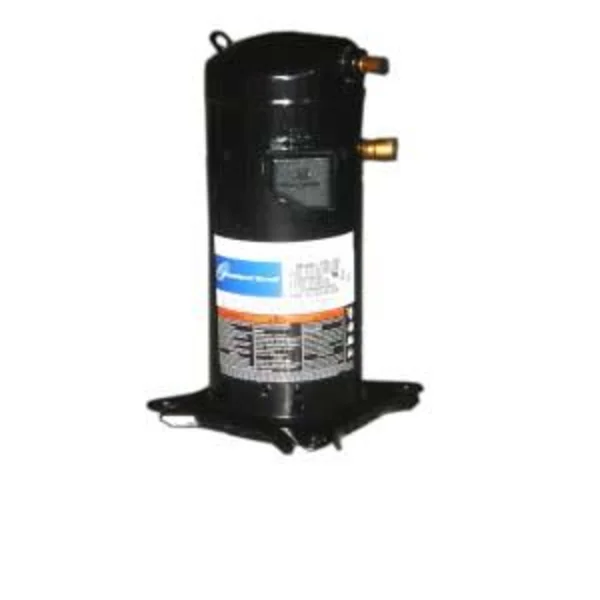

Kompresor AC Copeland Scroll ZR40K3-PFJ-522

Kompresor AC Copeland ZR40K3-PFJ

HCFC, R-22, Mid Point,   50 Hz,  1 - Phase, 220/240 V
Air Conditioning
Production Status:   Available for sale to all U.S. customers. Please check with your local Emerson Climate Technologies representative
for international availability.

                          Performance                                                                   Mechanical
  Evap(°F)/Cond(°F)               45/ 130            45/ 100                Number of Cylinders:         0       Displ (in^3/Rev):           3.309
  RG(°F)/Liq(°F)                  65/ 115             65/85                 Bore Size (in):              0.0     Displ (ft^3/hr):            333.1964
                                                                            Stroke (in):                 0.0
  Capacity (Btu/hr):              33300               39400
  Power (Watts):                  3000               2070                   Overall Length (in):    9.567        Mounting Length (in):       7.5
  Current (Amps):                 14.7                10.8                  Overall Width (in):     9.567        Mounting Width(in):         7.5
  EER (Btu/Wh):                   11.1                19.0                  Overall Height (in):     16.25       Mounting Height (in):   16.5*
  Mass Flow (lbs/hr):             488.0               505.0
                                                                            Suction Size (in):                   3/4  Stub
  Sound Power(dBA):                      68 Ave   73 Max                    Discharge Size (in):                  1/2  Stub
  Vibration (mils(peak-peak)):           2.0 Ave   3.0 Max                  Initial Oil Charge (oz):             42
                                                                            Oil Recharge (oz):                   38
  Record Date:                    2001-09-13                                Net Weight (lbs):                    61.5
                                                                            Internal Free Volume (in^3):          182.0
                                                                            HorsePower
                                                                           *  Overall compressor height on Copeland Brand Product's specified
                                                                              mounting grommets.

                                                                  Electrical

  LRA-High*:                100.0                MCC (Amps):                  24.0                              UL File No.:          SA-2337
  LRA-Half Winding:                              RPM:                         2900                              UL File Date:          14-Jun-1994
  LRA-Low*:                 90.0                 Max Operating Current:       18.7                              CSA File No.:         LR3104C
  RLA(=MCC/1.4; use for contactor selection):   17.1
  RLA (=MCC/1.56; use for breaker & wire size selection):   15.4
  *Low and High refer to the low and high nominal voltage ranges for which the motor is approved.

                                                         Alternate Applications

  Refrigerant                     Frequency(Hz)                Phase           Voltage                   Application

  R-22  HCFC                        60                            1            265                       Air Conditioning
