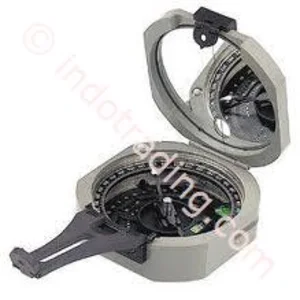

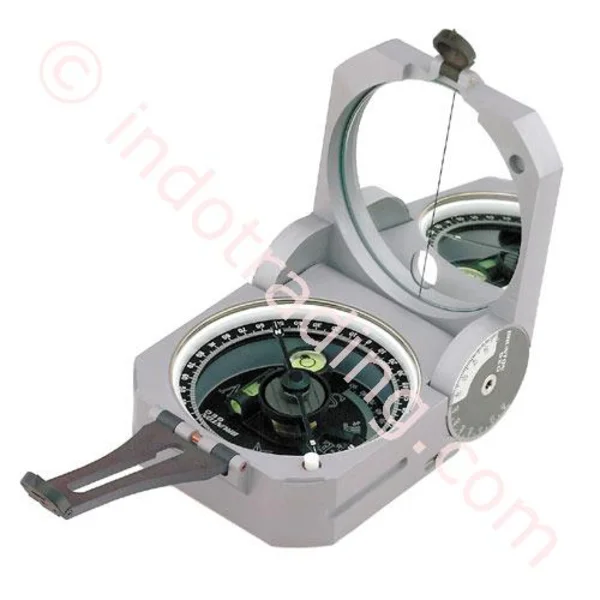

Geology Compass Brunton 5006

International Design Effectively Reduces Needle " Dip " When Professionals Travel To Different Parts Of The World . Powerful Alnico V Magnets Are Mounted To A Polished , Cupped Sapphire Jewel Bearings , Allowing For Smooth Needle Movement .

The Second International Pocket Transit Features :

    Long Alnico V Magnets For Rapid Alignment Of The Magnetic North Needle
    The Needle Has A Lower Center Of Gravity That Allows It To Be Used In A Wider Range Of Countries
    Azimuth Accuracy ± 1/2 ° With 1 ° Graduations
    Vertical Accuracy ± 1/2 ° With 1 ° Graduations And 10 Minute Readability
    Vertical Angle Measurements To ± 90 ° Or 100 % Grade
    A Percent Grade Scale With Increments Of 5 %
    Induction Damped Needle For Quick , Accurate Readings
    Sapphire Jewel Bearing Allows For Smooth Needle Movement
    Magnetic Declination Adjustment Allows For East Or West Declination Settings To 180 °
    Short And Long Sights For Increased Accuracy When Sighting Azimuth Or Vertical Angles
    Precision Aligned Mirror With Convenient " See Through " Sighting Capability
    Durable Aluminum Body
    Ball & Socket Tripod Mount For Increased Accuracy
    Sealed With O - Rings And And Silicon For Waterproofing And Improve Legibility
    Durable Leather Carrying Case

Features

Brunton 5005Lm International Transit ; Inhand

Figure Brunton International Transit In The Closed Position , In Hand .


The Second International Pocket Transit Features :

    Long Alnico V Magnets For Rapid Alignment Of The Magnetic North Needle
    The Needle Has A Lower Center Of Gravity That Allows It To Be Used In A Wider Range Of Countries
    Azimuth Accuracy ± 1/2 ° With 1 ° Graduations
    Vertical Accuracy ± 1/2 ° With 1 ° Graduations And 10 Minute Readability
    Vertical Angle Measurements To ± 90 ° Or 100 % Grade
    A Percent Grade Scale With Increments Of 5 %
    Induction Damped Needle For Quick , Accurate Readings
    Sapphire Jewel Bearing Allows For Smooth Needle Movement
    Magnetic Declination Adjustment Allows For East Or West Declination Settings To 180 °
    Short And Long Sights For Increased Accuracy When Sighting Azimuth Or Vertical Angles
    Precision Aligned Mirror With Convenient " See Through " Sighting Capability
    Durable Aluminum Body
    Ball & Socket Tripod Mount For Increased Accuracy
    Sealed With O - Rings And And Silicon For Waterproofing And Improve Legibility
    Durable Leather Carrying Case
    One Year Warranty

5006Lm International Pocket Transit

    0-360 °
    National Stock Number - Nsn 6675-01-127-8394

5005Lm International Pocket Transit

    Quads 0-90 °

Brunton 5005Lm International Transit ; Bag

View From The Leather Pouch That Came With The International Transit

Description Of Parts

Brunton 5005Lm International Transit

5005Lm Face With Quads 0-90 ° .

Brunton 5006Lm International Transit

5006Lm Face With 0-360 ° .
Brunton Pocket Transit International 5005Lm
Brunton Pocket Transit International 5005Lm

 A. Needle
Induction Damped Needle , Which Allows The Needle To Find Magnetic North And Came To A Rest In A Minium Amount Of Time , Without Degradation Of The Accuracy .

B. Pass Circle
In Combination With The Needle , Which Is 1 ° Graduated Circle Allows Accurate 1/2 ° Azimuth Readings On Both Degree ( 0 ° To 360 ° ) And Quadrant ( 0 ° To 90 ° ) Graduated Circle .

C. Zero Pin
Zero Pointer Pin Is Used For Magnetic Declination Adjustment . If No Adjustment Is Required , The Pin Should Lead To 0 ° .

D. Vernier
The Adjustable Vernier Used In Measurments Slope .

E. Round Rate
Use The Round Level To Level Pocket Transit For Azimuth Measurements .

F. Long Level
Long Level For The Measurement Of The Slope . Adjust The Length Using Vernier Adjustment ( L ) .
G. Small Vision
Attached To The Cover , Small Sights Are Used For Precise Bearing And Inclination Sightings .

H. Mirror
Located On The Inside , Mirror And Mirror Center Line Which Is Used For Accurate Azimuth Measurements , When Using Transit As A Prismatic Compass . ( Note : The Image In The Mirror Is The Ceiling Of Our Shop , It Is A Perfect Mirror Opposite . )

I. Vision Peep Sight Large With
The Scenery Is Great And The Attached Peep Sights Are Used For Precise Measurement Of Azimuth .

J. Adjusting Screw Circle
With Screwdiver , Graduated Circle By Turning The Rotary Circle Adjusting Screws .

K. Ball And Socket Tripod Mount
Slots On Both Sides Of The Body Is To Install An Optional Brunton Tripod .

L. Vernier Adjustment
Use Vernier Adjustment To Adjust The Level Of The Long Slide And Tilt For Measurments .

Specification

Appeal
Alnico V Bar Magnets

Accuracy
Bearing : + / - 1/2 ° Accurate
Tendency : + / - 1 ° Accurate ( 30 Min Read )

Size
Width : 2.79 In ( 7:09 Cm ​​)
Duration : 3:09 In. ( 7.84 Cm )
Height : 1.31 In ( 3.34 Cm )
Weight
7.1 Oz ( 20.1 G )
